Hyundai Kona: Transmission shift indicator / Dual clutch transmission shift indicator

In the manual shift mode, this indicator informs which gear is desired while driving to save fuel.

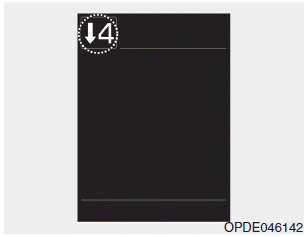

• Dual clutch transmission shift indicator

- Shifting up :▲2, ▲3, ▲4, ▲5, ▲6 ▲7

- Shifting down :▼1, ▼2, ▼3, ▼4, ▼5, ▼6

For example

▲3: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

▼3: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th, 5th, or 6th gear).

When the system is not working properly, the indicator is not displayed.
