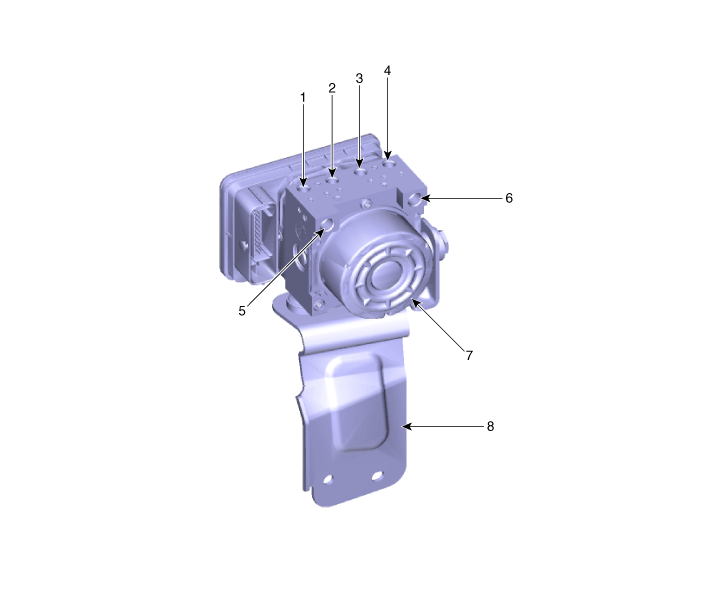

Components

1. Front - right tube
2. Rear - left tube
3. Rear - right tube
4. Front - left tube

5. MC SEC
6. MC PRI
7. ESP control module (HECU)
8. Bracket

Troubleshooting

Failure Diagnosis 1. In principle, ESP and TCS controls are prohibited in case of ABS failure. 2. When ESP or TCS fails, only the failed sy ...

ESP Control Unit Repair procedures

Removal 1. Turn the ignition switch OFF and then disconnect the negative (-) battery cable. 2. Separate the intercooler inlet hose (A) ...
