Hyundai Kona: Front Seat / Front Seat Frame Assembly Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly Components and components location

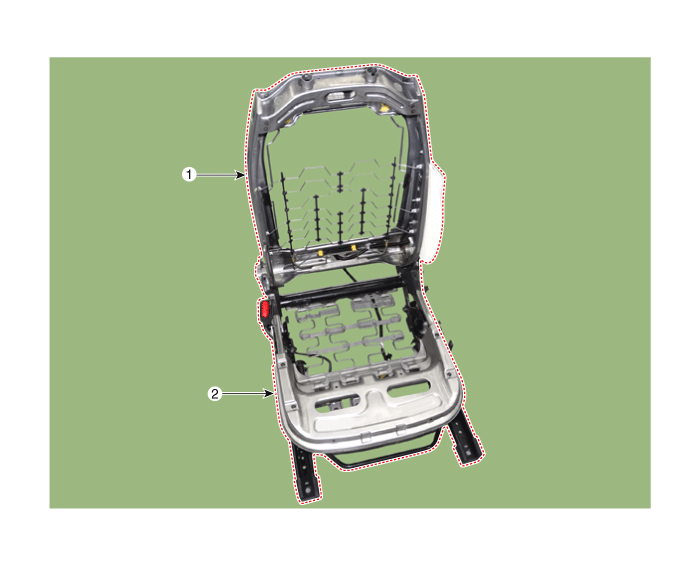

Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly
