Hyundai Kona: ABS (Anti-Lock Brake System) / Front Wheel Speed Sensor Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Brake System / ABS (Anti-Lock Brake System) / Front Wheel Speed Sensor Components and components location

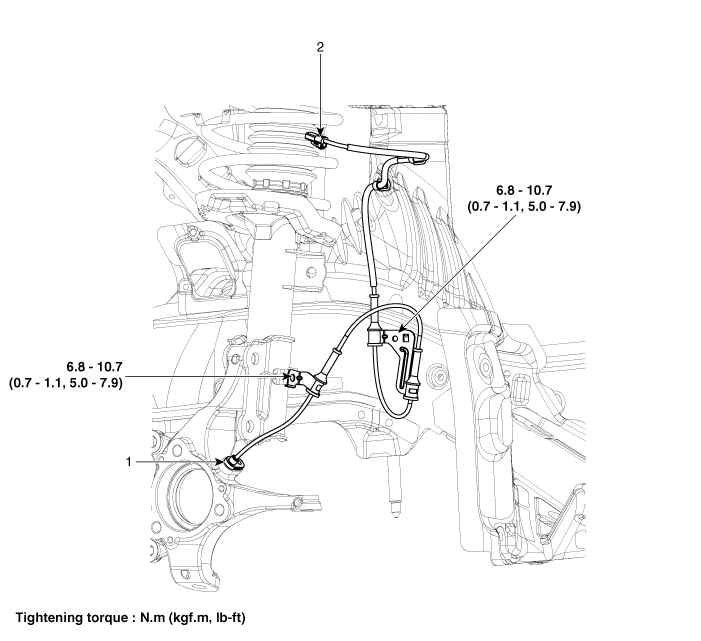

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector

ABS Control Module Repair procedures
Removal 1. Turn the ignition switch OFF and then disconnect the negative (-) battery cable. 2. Separate the intercooler inlet hose (A) ...

Front Wheel Speed Sensor Repair procedures
Removal 1. Turn the ignition switch OFF and then disconnect the negative (-) battery cable. 2. Loosen the wheel nuts slightly. ...
