Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Components and components location
| Component Location |

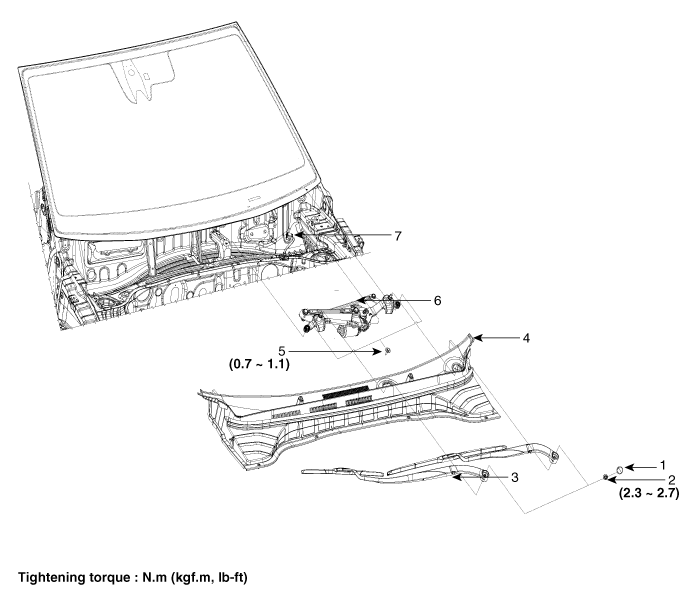

| 1. Cap 2. Nut 3. Wiper arm & blade 4. Cowl top cover |
5. Bolt 6. Wiper motor & linkage assembly 7. Wiper motor connector |
Windshield Wiper-Washer Switch Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
If it is necessary to remove multifunction switch assembly, ...
Front Wiper Motor Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
If necessary, release the wiper blade fixing clip by pulling ...
