Hyundai Kona: Steering wheel / Heated Steering wheel Schematic diagrams

Hyundai Kona (OS) 2018-2024 Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic diagrams

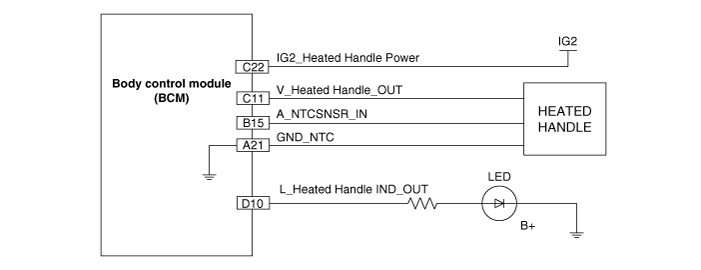

Schematic Digram

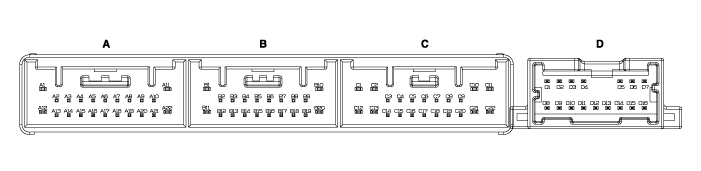

Terminal Function

Pin
Function
C22
Ignition 2_Heated handle power
C11
Heated handle
A21
NTC (-)
B15
NTC (+)
D10
Heated handle IND.
