Hyundai Kona: Indicators And Gauges / Instrument Cluster Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Components and components location

Components

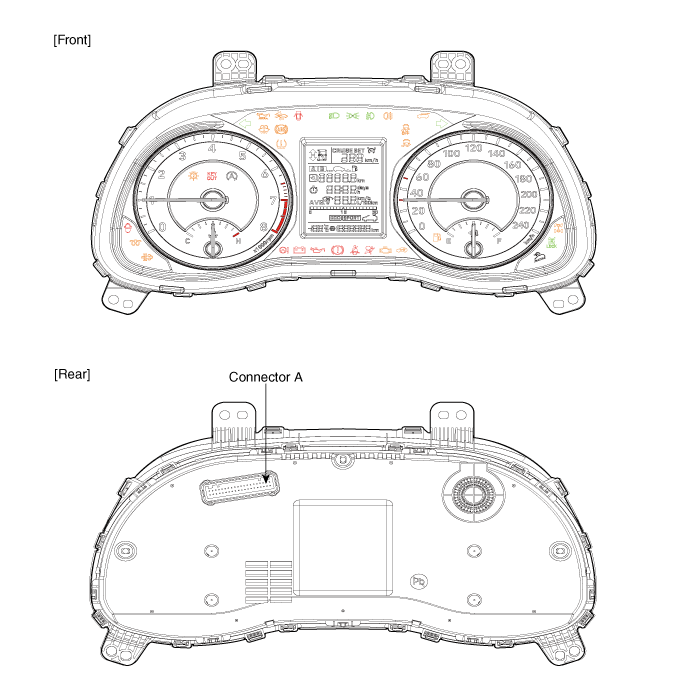

[Mono type (3.5")]

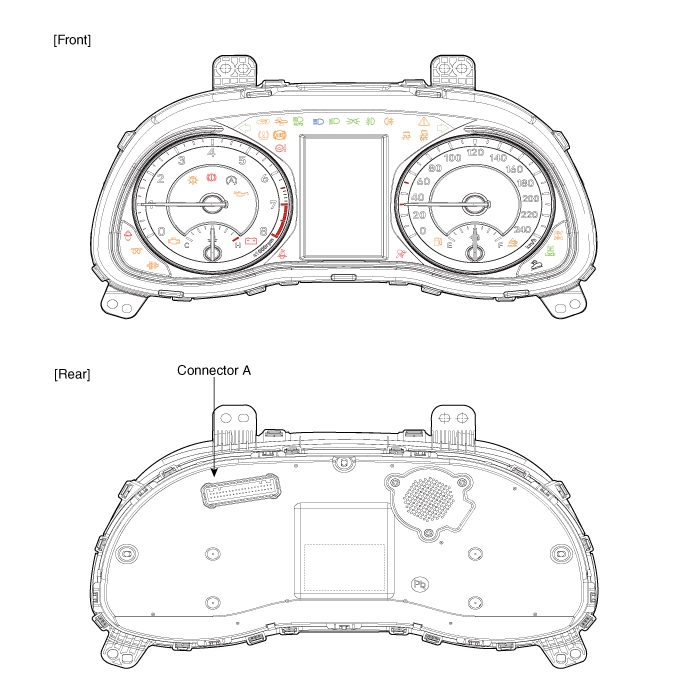

[Super vision type (4.2")]

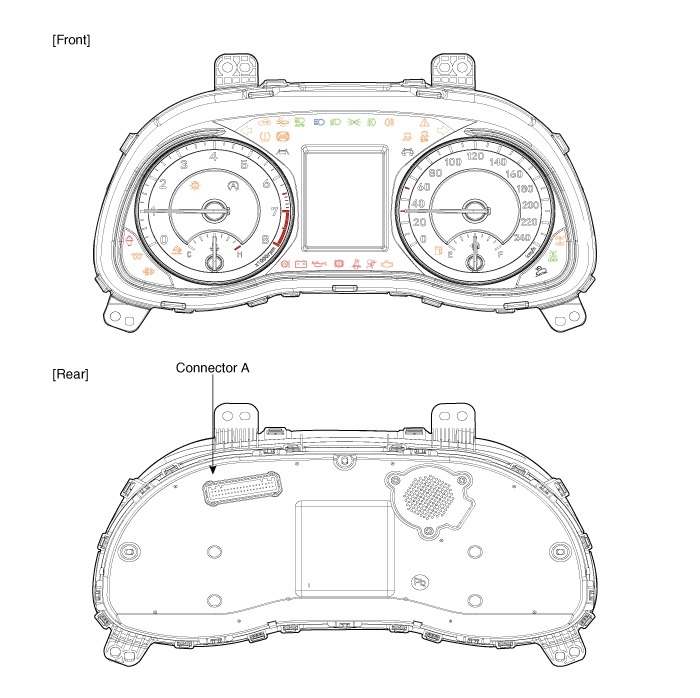

[Seg type (3.5")]

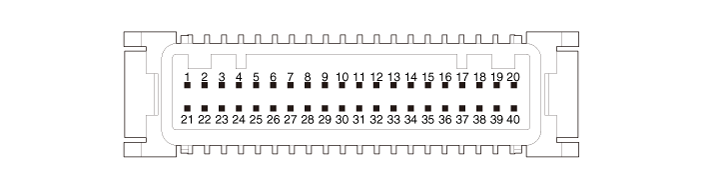

Connector Pin Information
No
Description
No
Description
1
GND
21
Trip switch (-)
2
Illumination (-)
22
Trip switch 1 (+)
3
Rheostat switch (Down)_Input
23
Trip switch 2 (+)
4
Rheostat switch (Up)_Input
24
MT ("N" Position)
5
Dentent
25
Driver mode switch_Input (AT only)
6
AT ('P' Position)
26
-
7
AT ('R' Position)
27
-
8
AT ('N' Position)
28
Washer level low signal
9
AT ('D' Position)
29
Multimedia-CAN (Low)
10
AT ('S' Position)
30
Multimedia-CAN (High)
11
Immobilizer_Input
31
-
12
Vehicle speed_Input
32
Chassis-CAN (High)
13
Alternator_Input
33
Chassis-CAN (Low)
14
Fuel sender (+)_Input
34
-
15
-
35
-
16
Fuel sender (-)_Input
36
-
17
Water Separator_Input
37
GND
18
Air Bag (+)_Input
38
-
19
Oil press switch_Input
39
IGN 1
20
-
40
Battery (+)

Troubleshooting
Troubleshooting Error Item Failure symptom Inspection items Detailed inspections Relevant Parts/ ...

Instrument Cluster Schematic diagrams
Circuit Diagram [Mono type (3.5")] [Super vision type (4.2")] [Super vision type (4.2")] ...
