Hyundai Kona: Your vehicle at a glance / Instrument panel overview

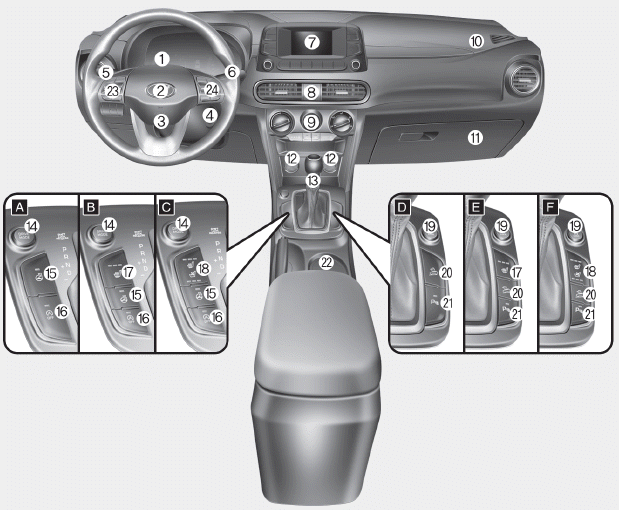

■ Left-Hand drive type

1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Key ignition switch
Engine Start/Stop button
5. Light control/Turn signals
6. Wiper/Washer
7. Audio system
Navigation system
8. Hazard warning flasher switch
9. Manual climate control system
Automatic climate control system
10. Passenger’s front air bag
11. Glove box
12. Power outlet
13. Manual transmission shift lever/ Dual clutch transmission shift lever
14. Drive mode button
15. Heated steering wheel
16. Idle stop and go (ISG) OFF button
17. Seat warmer
18. Seat warmer/Air ventilation seat
19. 4WD lock button
20. DBC button
21. Parking Distance Warning (Reverse/Forward) button
22. Cup holder
23. Steering wheel audio controls
Bluetooth® wireless technology hands-free controls
24. Speed limiter controls
Cruise controls

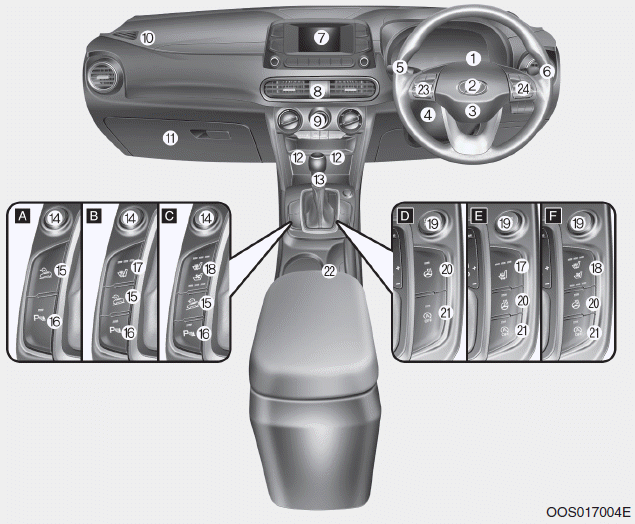

■ Right-Hand drive type

1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Engine Start/Stop button
5. Light control/Turn signals
6. Wiper/Washer
7. Audio system
Navigation system
8. Hazard warning flasher switch
9. Manual climate control system
Automatic climate control system
10. Passenger’s front air bag
11. Glove box
12. Power outlet
13. Manual transmission shift lever/ Dual clutch transmission shift lever
14. 4WD lock button
15. DBC button
16. Parking Distance Warning (Reverse/Forward) button
17. Seat warmer
18. Seat warmer/Air ventilation seat
19. Drive mode button
20. Heated steering wheel
21. Idle stop and go (ISG) OFF button
22. Cup holder
23. Steering wheel audio controls
Bluetooth® wireless technology hands-free controls
24. Speed limiter controls
Cruise controls

Interior overview
■ Left-Hand drive type 1. Inside door handle 2. Outside rearview mirror folding 3. Outside rearview mirror control 4. Central door lock switch 5. Power window lock switch 6. Power window switches ...

Engine compartment
■ Gasoline Engine (Kappa 1.0 T-GDI) ■ Gasoline Engine (Gamma 1.6 T-GDI) 1. Engine coolant reservoir/ Engine coolant cap 2. Fuse box 3. Battery 4. Brake/clutch fluid reservoir 5. Air cleaner 6. ...
