Hyundai Kona: Intake and Exhaust System / Intercooler Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Mechanical System / Intake and Exhaust System / Intercooler Components and components location

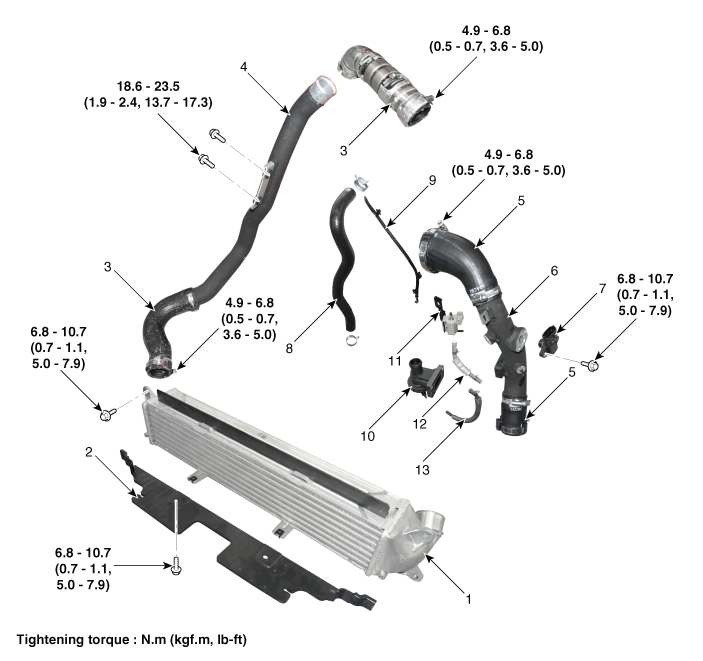

Components

1. Intercooler
2. Intercooler air guard
3. Intercooler inlet hose
4. Intercooler inlet pipe
5. Intercooler outlet hose
6. Intercooler outlet pipe
7. Boost pressure sensor (BPS)

8. RCV hose
9. RCV Solenoid hose A
10. Recirculation valve (RCV)
11. RCV Solenoid
12. RCV Solenoid hose B
13. RCV Solenoid hose C

Exhaust Manifold Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the engine cover. (Refer to Engine and Transaxle As ...

Intercooler Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the engine cover. (Refer to Engine and Transaxle As ...
