Hyundai Kona: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

Hyundai Kona (OS) 2018-2022 Service Manual / Engine Control / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

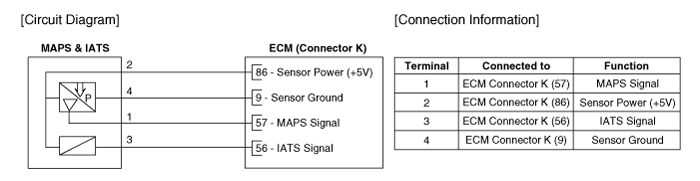

Circuit Diagram

Harness Connector

Intake Air Temperature Sensor (IATS) Specifications
Specification Temperature Resistance (kΩ) °C °F -40 -40 40.93 - 48.35 ...

Intake Air Temperature Sensor (IATS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between th ...
