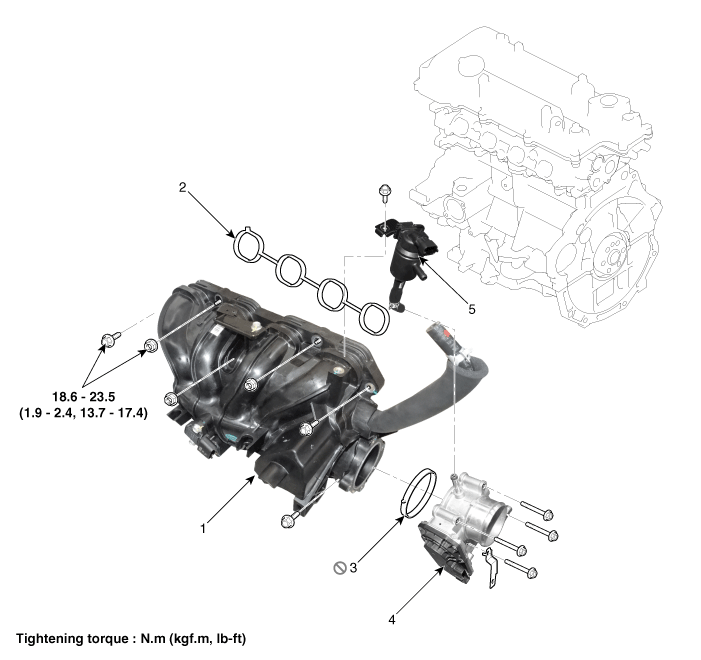

| Components |
| 1. Intake manifold assembly
2. Intake manifold gasket 3. Electronic throttle body gasket |
4. Electronic throttle body
5. Purge control solenoid valve (PCSV) |
Air Cleaner Repair procedures
Removal and Installation
Air Cleaner Assembly
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer ...
Intake Manifold Repair procedures
Removal and Installation
1.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
2.
Disconn ...
