Hyundai Kona: MFC(Multi-Function Camera system) / Multi-Function Camera Unit Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Body Electrical System / MFC(Multi-Function Camera system) / Multi-Function Camera Unit Components and components location

Component Location

Repair procedures
Variant Coding    When you need variant coding: – Replac ...

Multi-Function Camera Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the MFC unit cover (A). ...

Other information:

Hyundai Kona (OS) 2018-2026 Service Manual: Schematic diagrams

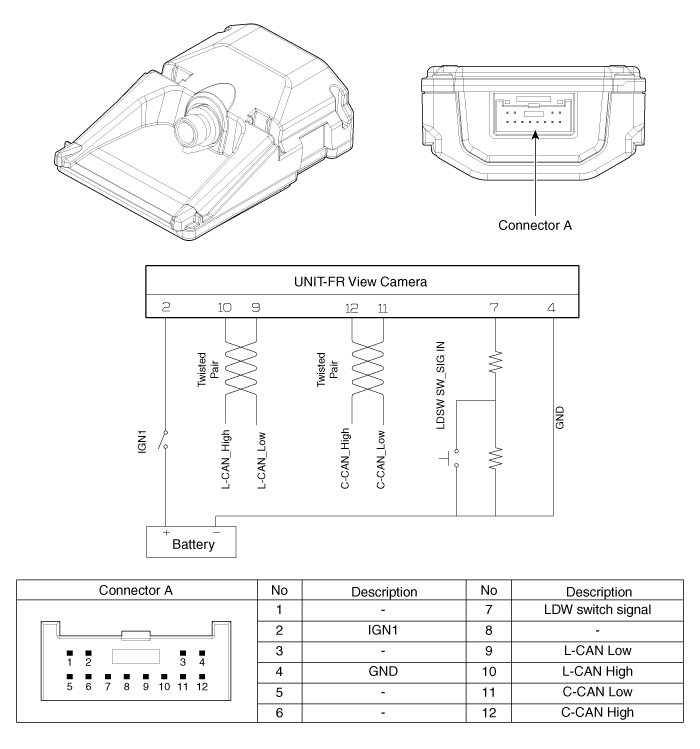

Schematic Diagram Terminal Function No Function 1 - 2 C-CAN Low 3 C-CAN High 4 GND 5 IGN_1 ...

Hyundai Kona (OS) 2018-2026 Service Manual: Electric WGT Control Actuator Description and operation
Desrcription The Electric WGT Control Actuator is installed on the turbocharger. It operates the vain in the Waste Gate Turbocharger (WGT) and regulates the compressed air amount by the ECM's PWM signal. This actuator consists of a DC motor which actuates the vane, a 2-s ...
