Hyundai Kona: Audio / Multimedia Jack Schematic diagrams

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Audio / Multimedia Jack Schematic diagrams

Circuit Diagram

Audio Remote Control Repair procedures

Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] Switch ...

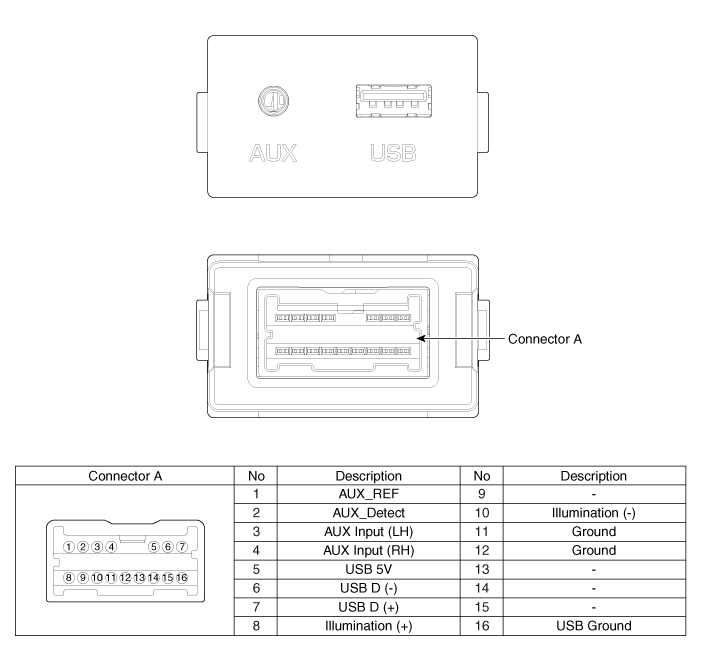

Multimedia Jack Description and operation

Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sou ...
