Hyundai Kona (OS) 2018-2020 Service Manual / Engine Mechanical System / Cylinder Block / Piston and Connecting Rod Components and components location

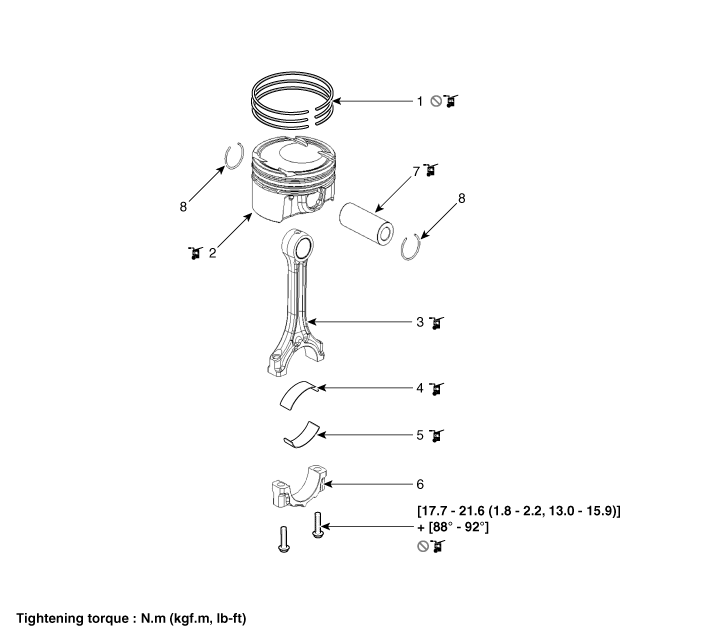

Components

1. Piston ring
2. Piston
3. Connecting rod
4. Connecting rod upper bearing
5. Connecting rod lower bearing
6. Connecting rod bearing cap
7. Piston pin
8. Snap ring

Rear Oil Seal Repair procedures
Removal 1. Remove the dual clutch transmission. (Refer to DCT(Dual clutch Transmission) System - "DCT (Dual clutch Transmission)") 2. ...

Piston and Connecting Rod Repair procedures
Disassembly    • Use fender covers to avoid damaging painted surfaces. ...
