Hyundai Kona: Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

Hyundai Kona (OS) 2018-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

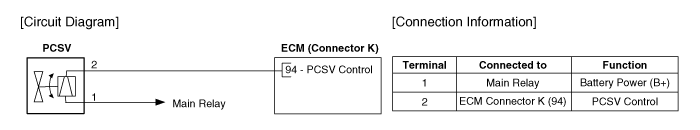

Circuit Diagram

Harness Connector

Purge Control Solenoid Valve (PCSV) Specifications
Specification Item Specification Coil Resistance (Ω) 22.0 - 26.0 [20°C (68°F)] ...

Purge Control Solenoid Valve (PCSV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between th ...
