Hyundai Kona: Engine Control System / RCV Control Solenoid Valve Schematic diagrams

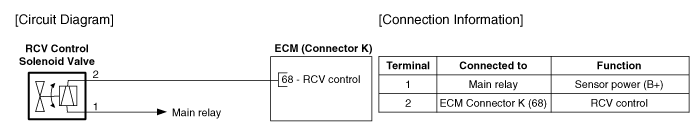

Circuit Diagram

Harness Connector

RCV Control Solenoid Valve Specifications
Specification Item Specification Coil Resistance (Ω) 28.3 - 31.1 [20°C (68°F)] ...

RCV Control Solenoid Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the RCV connector. 3. Measure resistance between the ...
