Hyundai Kona: Light bulbs / Rear combination lamp bulb replacement

Hyundai Kona (OS) 2018-2021 Owners Manual / Maintenance / Light bulbs / Rear combination lamp bulb replacement

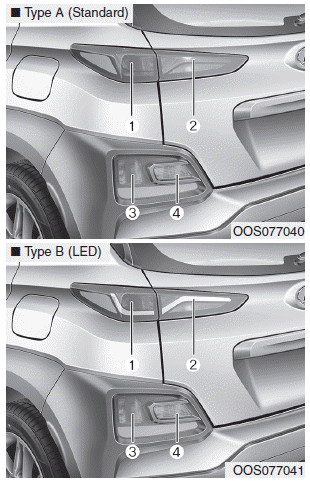

(1) Stop/Tail lamp
(2) Tail lamp(Type A), Stop/Tail lamp (Type B)
(3) Turn signal lamp
(4) Rear fog lamp (LHD : Left side, RHD : Right side)

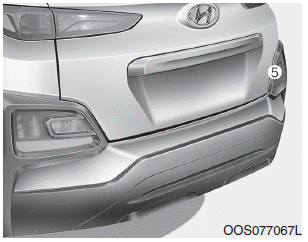

(5) Backup lamp (LHD : Right side, RHD : Left side)

Stop/Tail lamp

1. Turn off the engine.

2. Open the tailgate.

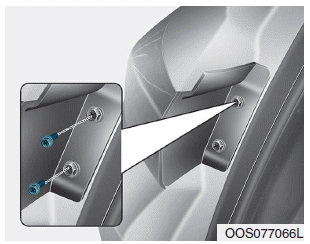

3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.

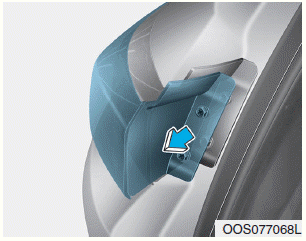

4. Remove the rear combination lamp assembly from the body of the vehicle.

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

9. Reinstall the lamp assembly to the body of the vehicle.

Tail lamp (Type A)

1. Turn off the engine.

2. Open the tailgate.

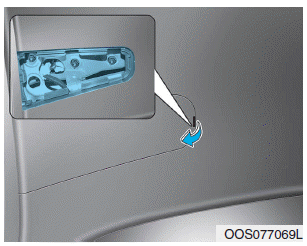

3. Remove the service cover using a flat-blade screwdriver.

4. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

5. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

6. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

7. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

8. Reinstall the lamp assembly to the body of the vehicle.

Tail / Stop lamp (Type B)

If the LED lamp does not operate, we recommend you to have the vehicle checked by an authorized HYUNDAI dealer.

Turn signal lamp / Back up lamp / Rear fog lamp

If these lamps do not operate, we recommend you to have the vehicle checked by an authorized HYUNDAI dealer.

Side repeater lamp replacement
If the light bulb does not operate, we recommend that you have the vehicle checked by an authorized HYUNDAI dealer. ...

High mounted stop lamp replacement
If the high mounted stop lamp does not operate, we recommend that you contact an authorized HYUNDAI dealer. ...
