Hyundai Kona: Blind-Spot Collision Warning (BCW) / Repair procedures
Hyundai Kona (OS) 2018-2026 Service Manual / Body Electrical System / Blind-Spot Collision Warning (BCW) / Repair procedures
| Diagnosis With GDS |
| 1. |
BCW system defects can be quickly diagnosed with the GDS. GDS operates
actuator quickly to monitor, input/output value and self diagnosis.
|
| 2. |
Connect the cable of GDS to the data link connector in driver side
crash pad lower panel, and turn on the GDS.
|
| 3. |
Select the vehicle model and then BCW system.
|
| 4. |

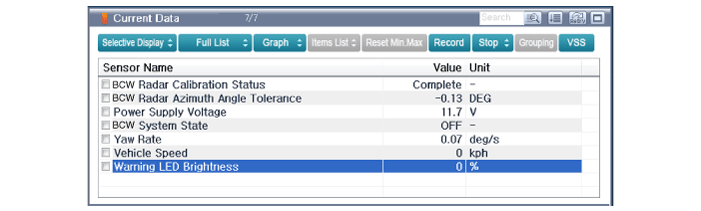

Select "Input/output monitoring", if you want to check current data
of BCW system.
|
| 5. |

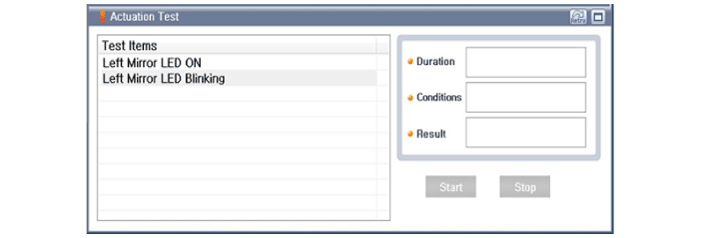

If you want to check each module operation forcefully, select "Actuation
test".
|
| 6. |
Ignition "OFF", connect GDS.
|
| 7. |

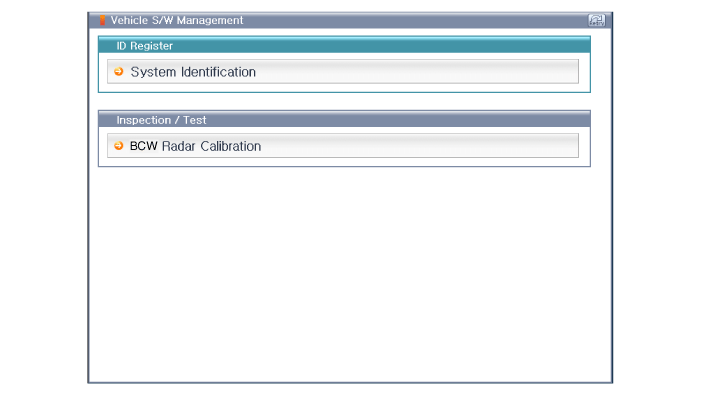

Ignition "ON" & Engine "OFF", select BCW system and "BCW Radar Calibration"
mode.
|
| 8. |

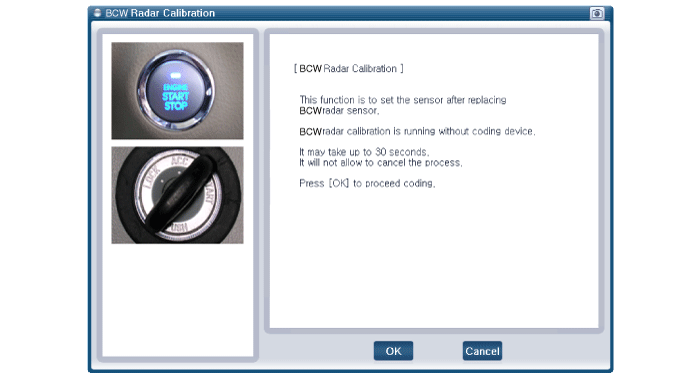

The GDS will show the BCW Reset function steps.
|

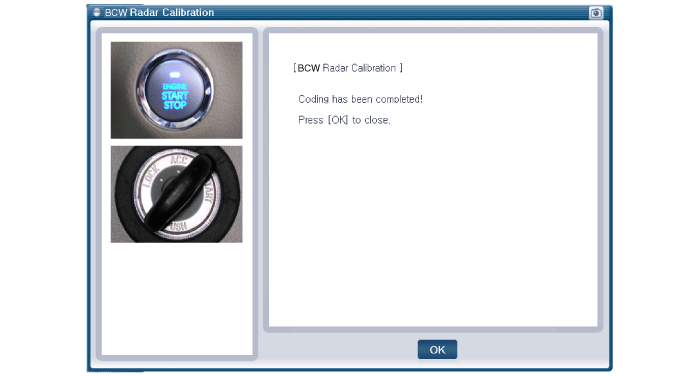

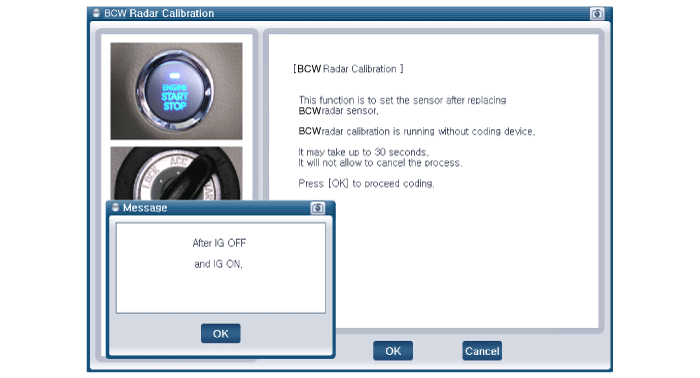

| 9. |
The BCW initialization procedure will be performed.
|
Description and operation
Description
BCW is a system that measures the relative speed and distance from the following
vehicles by using two electromagnetic wave radar sensors attached to the
...
Blind-Spot Collision Warning Unit Schematic diagrams
Circuit Diagram
...
