Hyundai Kona: Blind-Spot Collision Warning (BCW) / Blind-Spot Collision Warning Unit Schematic diagrams

Hyundai Kona (OS) 2018-2024 Service Manual / Body Electrical System / Blind-Spot Collision Warning (BCW) / Blind-Spot Collision Warning Unit Schematic diagrams

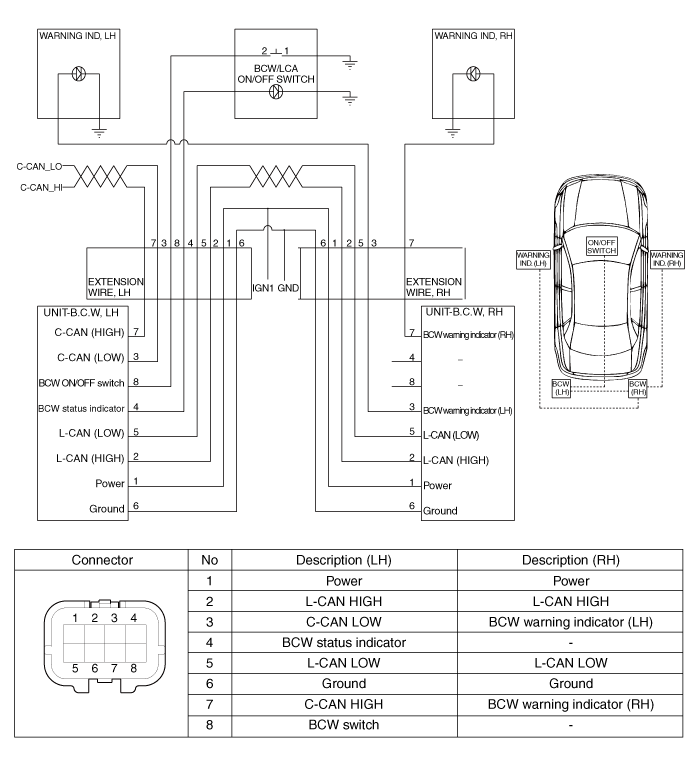

Circuit Diagram

Repair procedures

Diagnosis With GDS 1. BCW system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self di ...

Blind-Spot Collision Warning Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rea ...
