Hyundai Kona: Motor Driven Power Steering / Schematic diagrams
Hyundai Kona (OS) 2018-2021 Service Manual / Steering System / Motor Driven Power Steering / Schematic diagrams

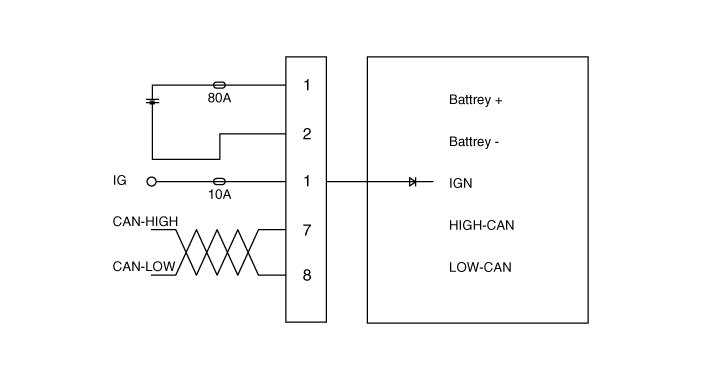

| Schematic Diagrams |
[MDPS]

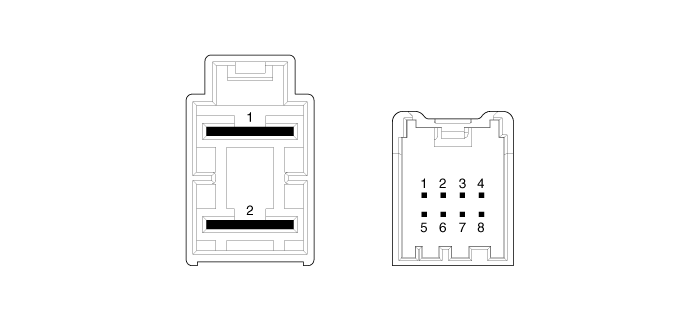

| Terminal function |
|
Type |
Pin No |
Description |
|
Battery |
1 |
Battery + |
|
2 |
Battery - |
|
|
Vehicle speed |
1 |
Ignition signal |
|
2 |
- |
|
|
3 |
- |
|
|
4 |
- |
|
|
5 |
- |
|
|
6 |
- |
|
|
7 |
High_CAN |
|
|
8 |
Low_CAN |
