Hyundai Kona: Dual Clutch Transmission Control System / Shift Cable Components and components location
Hyundai Kona (OS) 2018-2026 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Shift Cable Components and components location

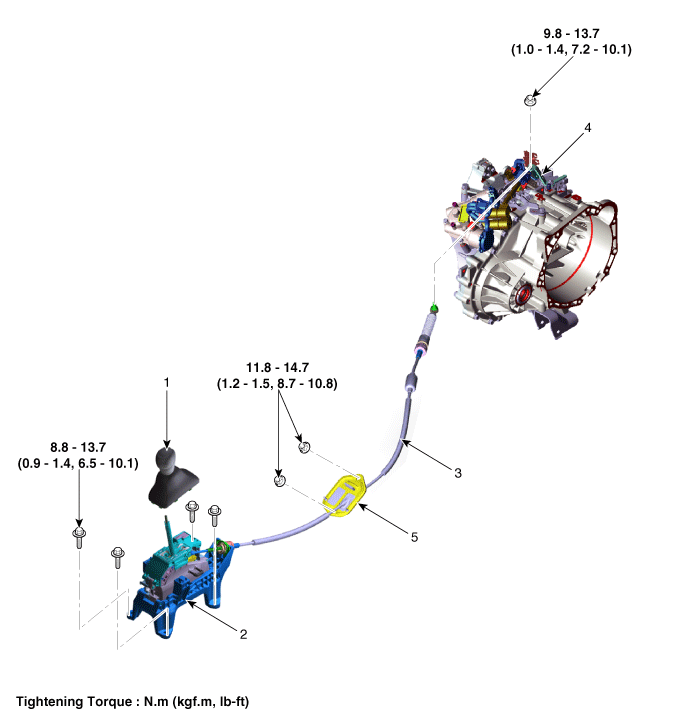

| Components |
| 1. Shift
knob & boots assembly 2. Shift lever assembly 3. Shift cable |
4. Manual
control lever 5. Shift cable retainer |
Shift Lever Repair procedures
Removal
1.
Remove the shift lever knob & boots (A) pull both of it up.
2.
Remove the floor console assembly.
(Refer to ...
Shift Cable Repair procedures
Removal
1.
Place the shift lever in the "N" position
2.
Remove the air cleaner assembly and air duct.
(Refer to Engine Me ...
