Hyundai Kona: Sun Roof / Sunroof Switch Repair procedures

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Sun Roof / Sunroof Switch Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

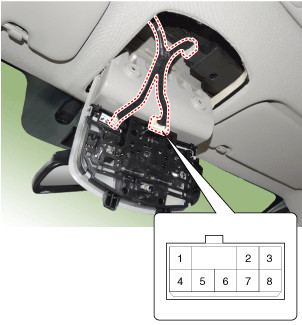

2.	Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

3.	Check for continuity between the terminals.
