Hyundai Kona: AVN System / AVN Remote Controller Schematic diagrams

Hyundai Kona (OS) 2018-2022 Service Manual / Body Electrical System / AVN System / AVN Remote Controller Schematic diagrams

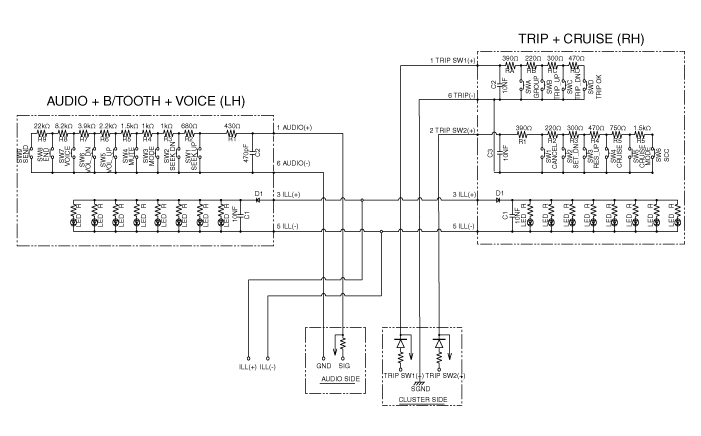

Circuit Diagram

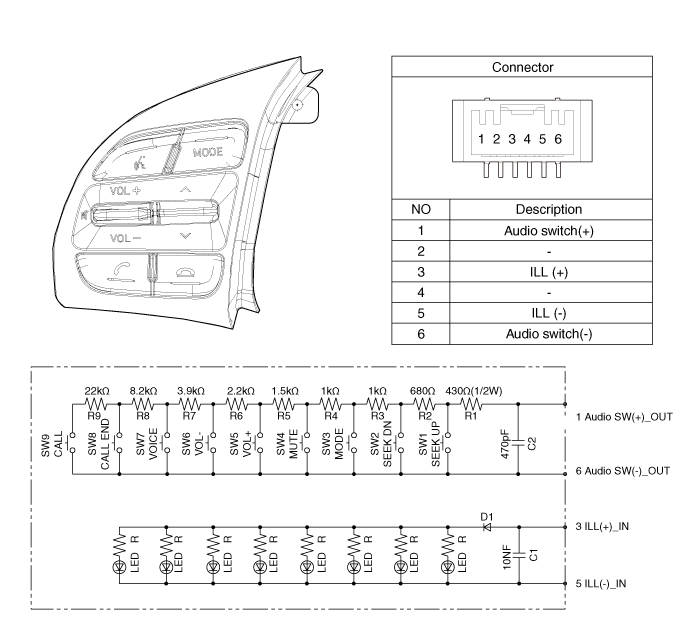

[Audio + B/Tooth + Voice]

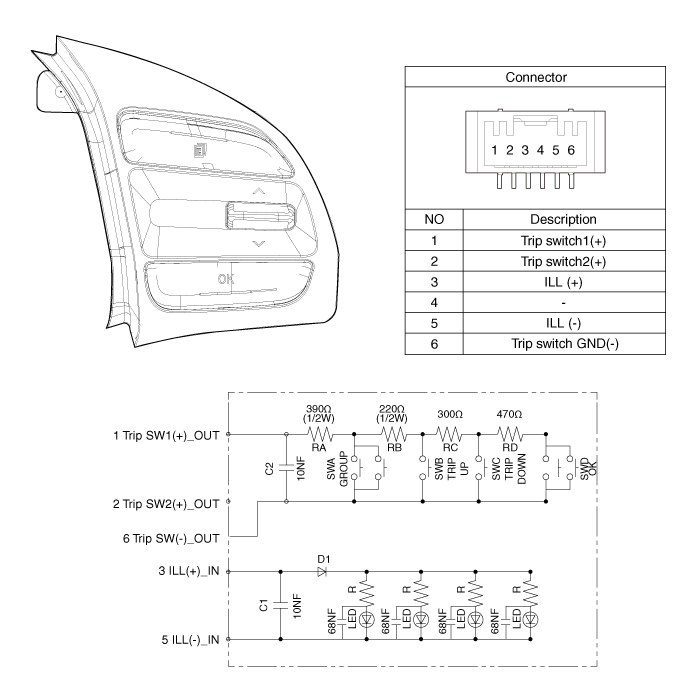

[Trip]

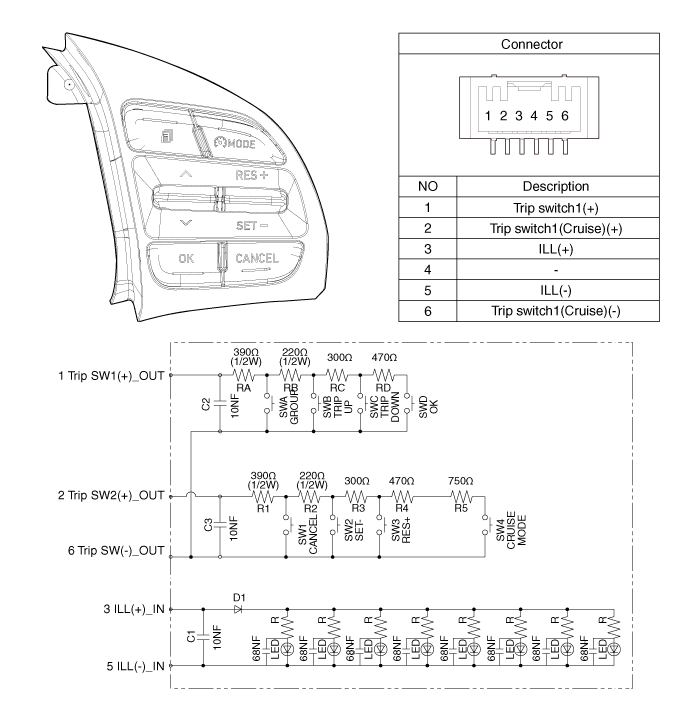

[Trip / Cruise]

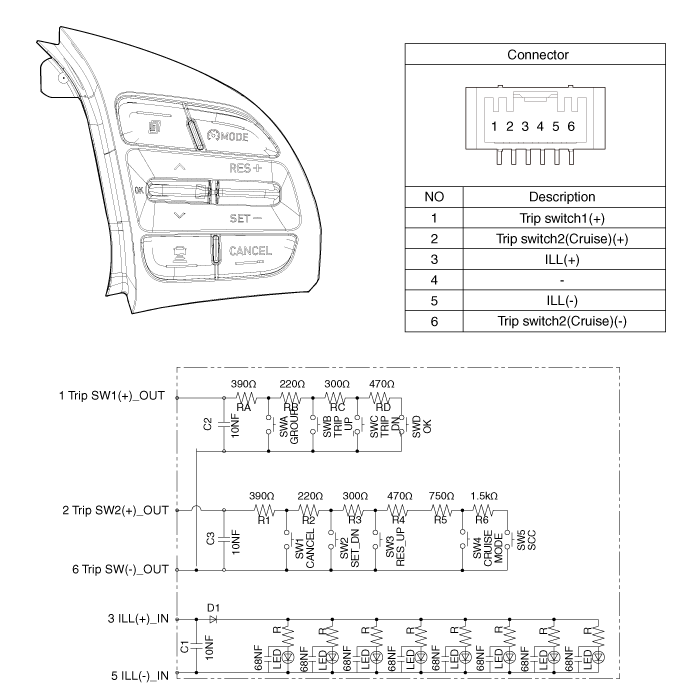

[Trip / Cruise/ Smart Cruise]

AVN Remote Controller Components and components location
Components 1. Left Remote Control Switch (Audio + Hands free) 2. Right Remote Control Switch (Cruise+Trip Computer) ...

AVN Remote Controller Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] Switch ...
