Hyundai Kona: Repair procedures / SRS Control Module (SRSCM) Components and components location
| Components |

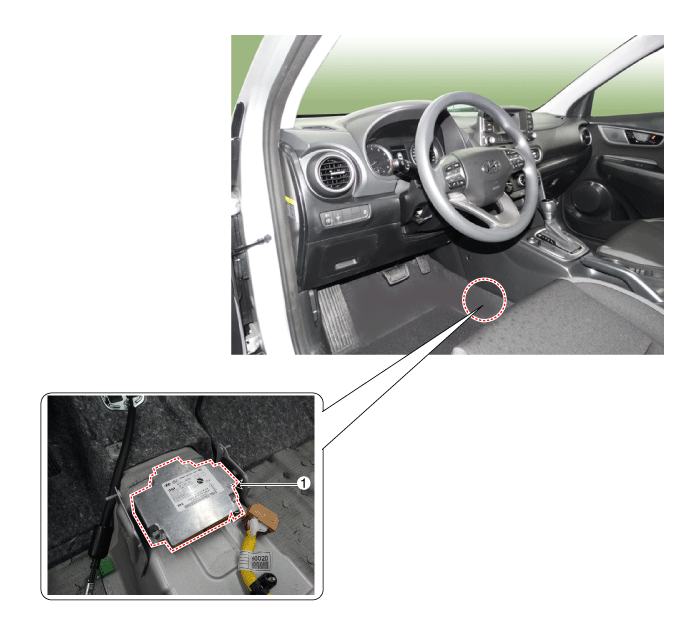

| 1. Supplemental Restraint
System Control Module (SRSCM) |
|
No |

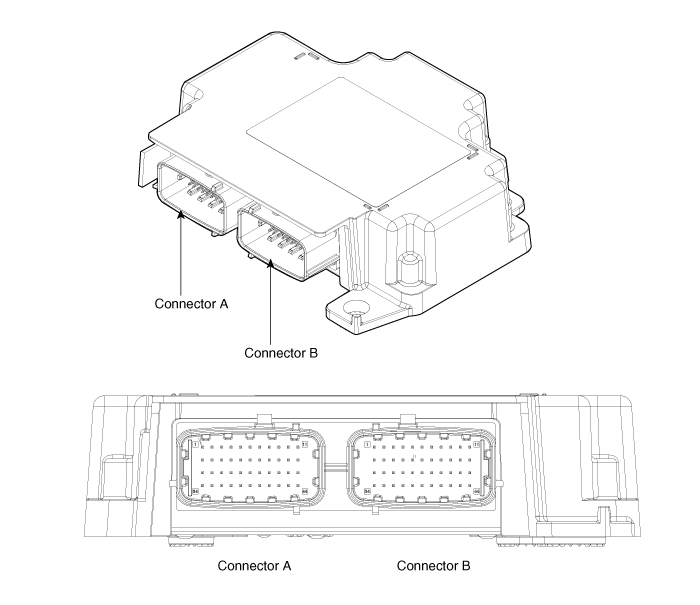

Connector A |
Connector B |
|
1 |
IGN 1 |
Passenger side impact sensor - High |
|
2 |
Driver front impact sensor - High |
Passenger seat belt pretensioner - Low |
|
3 |
Driver front impact sensor - Low |
Driver side impact sensor - High |
|
4 |
Passenger front impact sensor - High |
Driver side impact sensor - Low |
|
5 |
Passenger front impact sensor - Low |
Passenger pressure side impact sensor - Low |
|
6 |
C CAN (Low) |
Passenger Passenger side impact sensor - High |
|
7 |
C CAN (High) |
Driver Passenger side impact sensor - High |
|
8 |
P CAN (Low) |
Driver pressure side impact sensor - Low |
|
9 |
P CAN (High) |
- |
|
10 |
- |
- |
|
11 |
- |
GND |
|
12 |
Driver airbag 1st stage - High |
Driver seat belt pretensioner - Low (-) |
|
13 |
Driver airbag 1st stage - Low |
Driver seat belt pretensioner - High |
|
14 |
Passenger airbag 1st stage - Low |
Passenger seat belt pretensioner - High |
|
15 |
Passenger airbag 1st stage - High |
Passenger seat belt pretensioner - Low |
|
16 |
- |
Driver curtain airbag - Low |
|
17 |
- |
Driver curtain airbag - High |
|
18 |
Passenger airbagON/OFF switch (+) |
Driver side airbag - High |
|
19 |
Passenger airbagON/OFF switch (-) |
Driver side airbag - Low |
|
20 |
Passenger airbag ON lamp |
Passenger side impact sensor - Low |
|
21 |
- |
Passenger side airbag - High |
|
22 |
Crash signal output |
- |
|
23 |
Driver airbag #2 (High) |
- |
|
24 |
Driver airbag #2 (Low) |
- |
|
25 |
Passenger airbag #2 (Low) |
- |
|
26 |
Passenger airbag #2 (High) |
- |
|
27 |
Passenger airbag OFF lamp/ Tail lamp |
- |
|
28 |
- |
- |
|
29 |
- |
- |
|
30 |
- |
- |
|
31 |
- |
- |
|
32 |
- |
- |
|
33 |
- |
Passenger seat belt buckle sensor - Low |
|
34 |
- |
Passenger curtain airbag - Low |
|
35 |
- |
Passenger curtain airbag - High |
|
36 |
- |
- |
|
37 |
- |
- |
|
38 |
- |
- |
|
39 |
- |
- |
|
40 |
- |
Rear driver pretensioner - High |
|
41 |
- |
Rear driver pretensioner - Low |
|
42 |
- |
Rear passenger pretensioner - Low |
|
43 |
- |
Rear passenger pretensioner - High |
|
44 |
- |
Passenger seat belt buckle sensor - High |
SRSCM Schematic diagrams
Circuit Diagram
...
SRS Control Module (SRSCM) Description and operation
Description
•
Supplemental Restraint System Control Module (SRSCM) determines whether
and when to deploy air bag module, seat belt pretensioner (BPT) and
e ...
