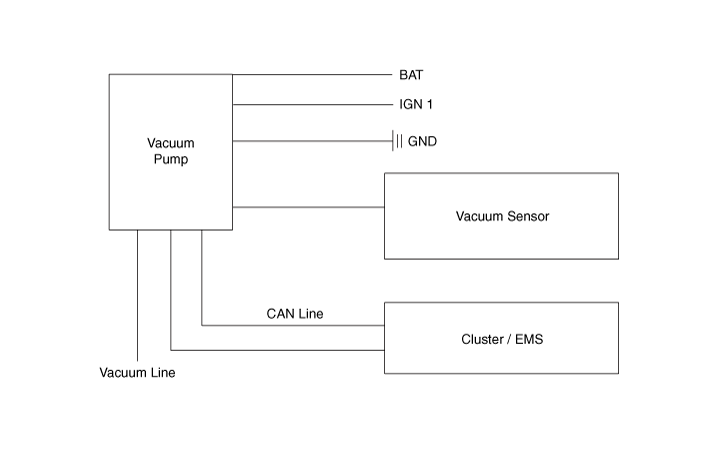

Hyundai Kona: Brake System / Vacuum Pump Schematic diagrams
| Schematic Diagrams |

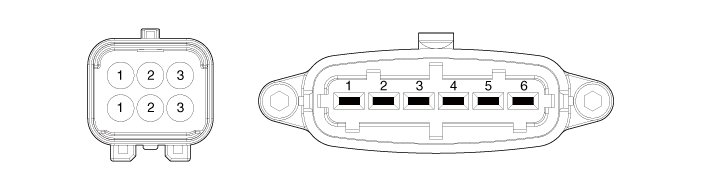

| Terminal function |
|
Terminal |
Description |
Wire color |
|
1 |
Ground |
Black |
|
2 |
Can High |
White |
|
3 |
Can Low |
Yellow |
|
4 |
Vacuum sensor |
Pink |
|
5 |
IGN 1 |
Blue |
|
6 |
Battery (+) |
Blue |
Vacuum Pump Components and components location
Components
1. Vacuum pump bracket
2. Vacuum pump connector
3. Vacuum pump
...
Vacuum Pump Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Check the safty after uplift the vehicle with lift.
...
