Hyundai Kona: ISG (Idle Stop & Go) System / Brake Switch Components and components location

Hyundai Kona (OS) 2018-2022 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Brake Switch Components and components location

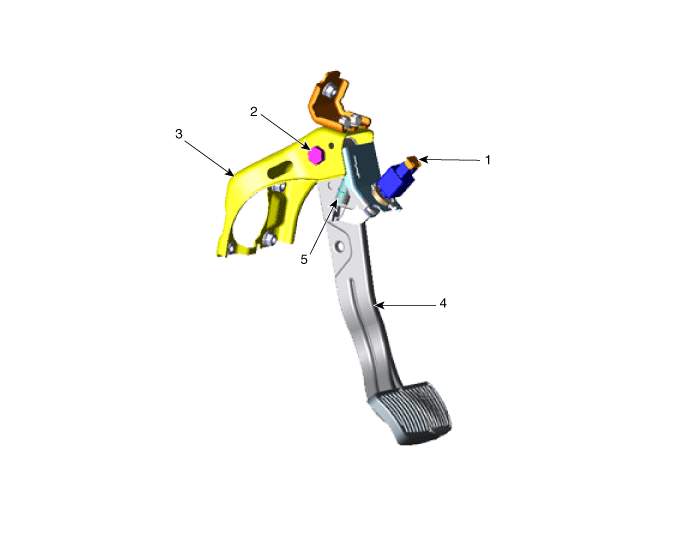

Components

1. Brake switch
2. Bolt
3. Brake member assembly

4. Brake pedal
5. Return spring
