Hyundai Kona: Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams
Hyundai Kona (OS) 2018-2020 Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

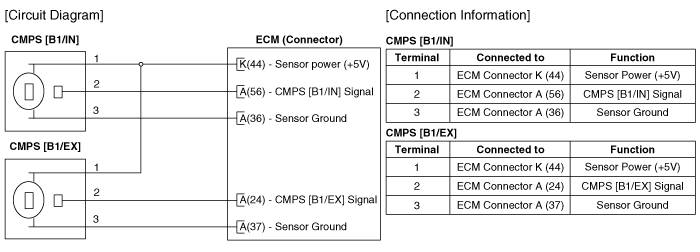

| Circuit Diagram |
Harness Connector
Camshaft Position Sensor (CMPS) Troubleshooting
Wave Form
...
Camshaft Position Sensor (CMPS) Repair procedures
Inspection
1.
Check the signal waveform of the CMPS and CKPS using the GDS.
Specification : Refer to "Wave Form"
...
