Hyundai Kona: Dual Clutch Transmission Control System / Clutch Actuator Assembly Schematic diagrams

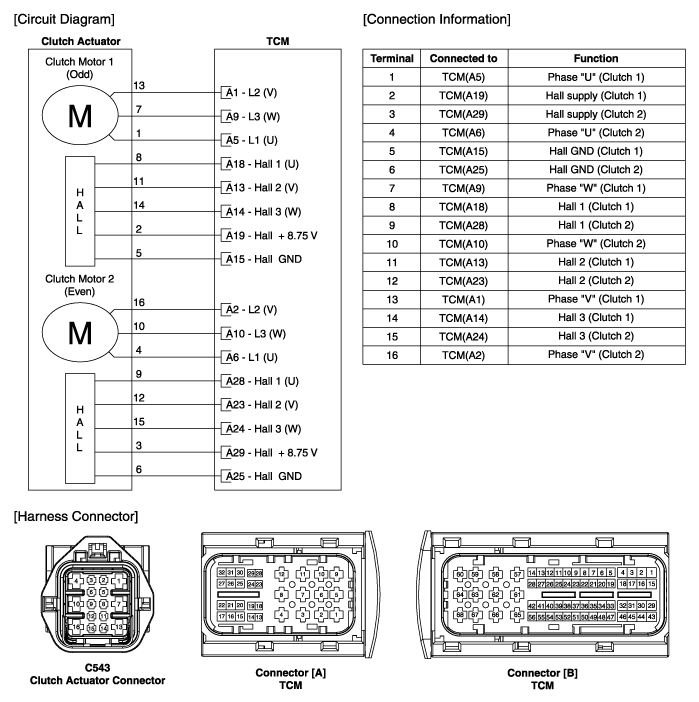

Circuit Diagram

Clutch Actuator Assembly Description and operation
Description • Components location : DCT (Dual Clutch Transmission) • Function The clutch actuator receives signals f ...

Clutch Actuator Assembly Repair procedures
Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") 2. Disconnec ...
