Hyundai Kona: Seat Electrical / Power Seat Control Switch Repair procedures

Hyundai Kona (OS) 2018-2022 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Repair procedures

Inspection
Seat Control Switch
1.

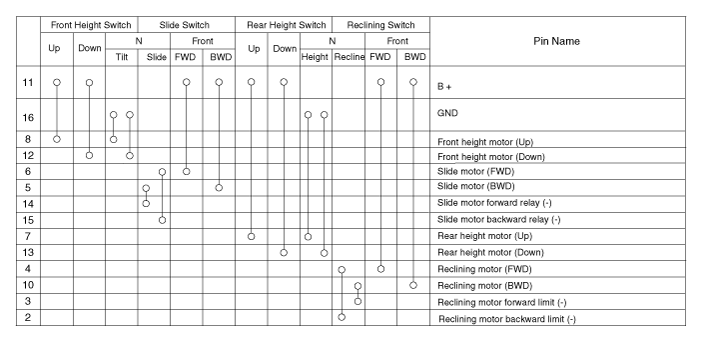

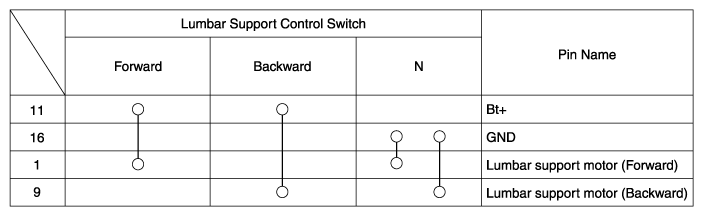

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

[Power Seat Control Switch]

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front seat outer shield cover.
(Refer to Body - "Front Seat Outer Shield Cover")
3.
Remove the power seat control switch (A) after loosening the screws.

Installation
1.
Install the power seat control switch after connecting the connector.
2.
Install the front seat outer shield cover.
3.
Connect the negative (-) battery terminal.
Power Seat Control Switch Schematic diagrams
Circuit Diagram ...
