Hyundai Kona: Tire Pressure Monitoring System / Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Suspension System (NON-ECS) / Tire Pressure Monitoring System / Components and components location

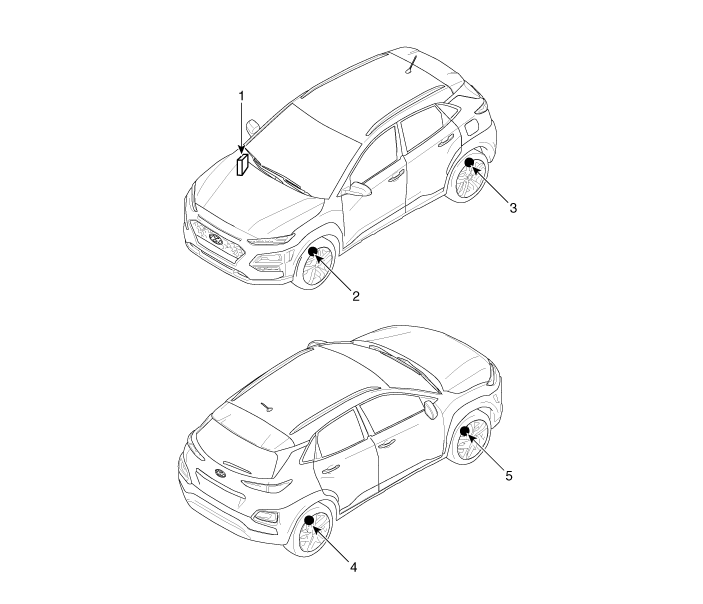

Components

1. Body control module (BCM)
2. TPMS sensor (FL)
3. TPMS sensor (RL)

4. TPMS sensor (FR)
5. TPMS sensor (RR)
