Hyundai Kona: ABS (Anti-Lock Brake System) / Components and components location

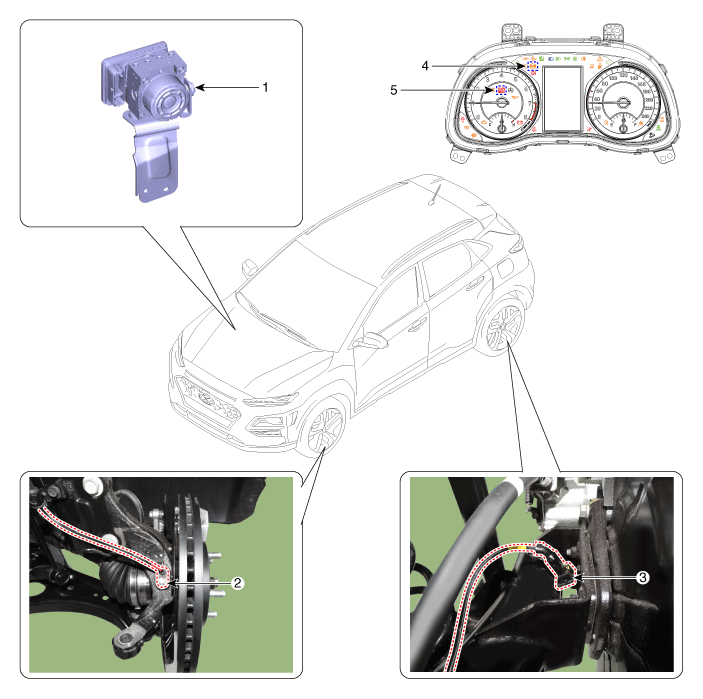

Components

1. ABS control module (HECU)
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. ABS warning lamp
5. EBD / parking brake warning lamp
