Hyundai Kona: Trunk Trim / Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body (Interior and Exterior) / Trunk Trim / Components and components location

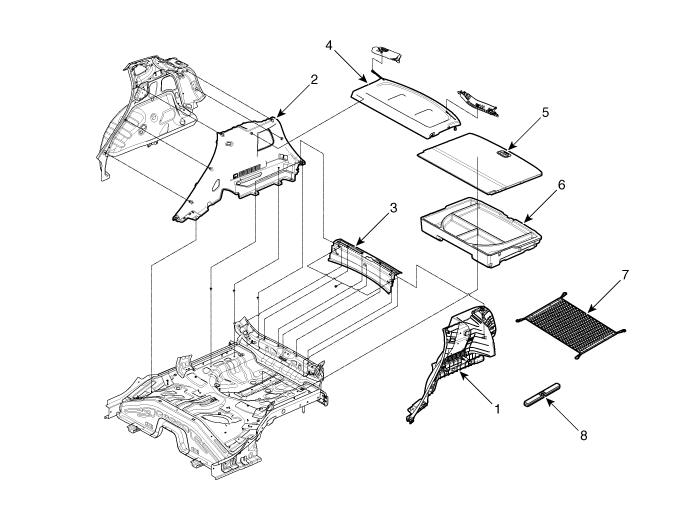

Components

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Covering shelf trim assembly

5. Luggage bord assembly
6. Luggage floor center tray assembly
7. Luggage floor net assembly
8. Car walking triangle assembly

Repair procedures

Replacement • Put on gloves to prevent hand injuries. ...
