Hyundai Kona (OS) 2018-2021 Service Manual / Body Electrical System / Audio / Components and components location

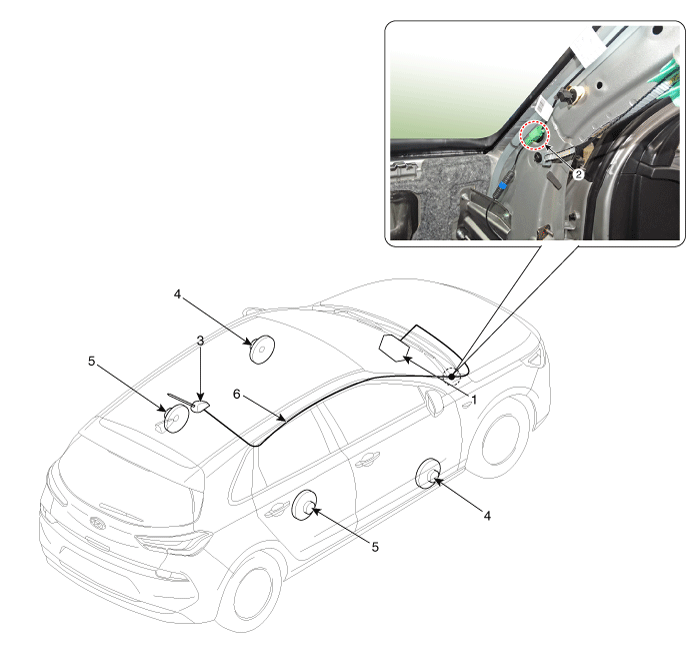

Component Location

1. Audio unit
2. Feeder cable joint connector
3. Roof antenna

4. Front door speaker
5. Rear door speaker
6. Antenna feeder cable

Specifications

Specifications Audio Items AUDIO Model RADIO/CD/MP3 Power supply DC 14.4V Parasit ...

Audio Unit Components and components location

Components [RADIO/MP3] Connector Pin Information NO Connector A Connector B Connector C Connector D ...
