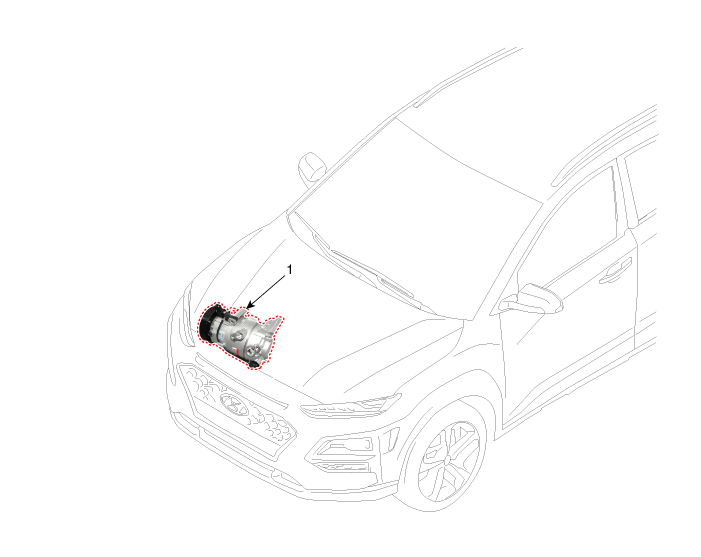

Components Location

1. Compressor

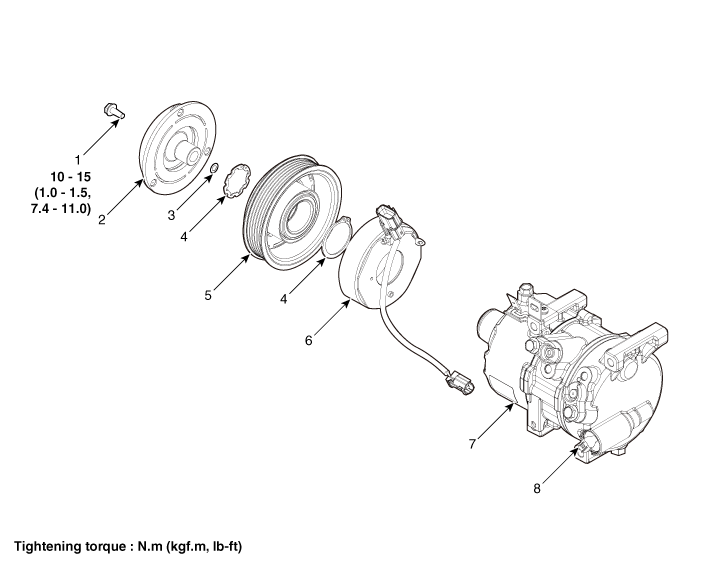

Components

1. Clutch Bolt
2. Limiter & Hub Assembly
3. Clutch hub spacer
4. Snap Ring

5. Pulley
6. Clutch magnetic coil
7. Compressor Assembly
8. Electric Control Valve (ECV)

Compressor Description and operation

Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor cha ...

Compressor Repair procedures

Removal Precautions for using the plastic pulley • Be ...
