Hyundai Kona: Auto Head Lamp Leveling Device / Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Body Electrical System / Auto Head Lamp Leveling Device / Components and components location

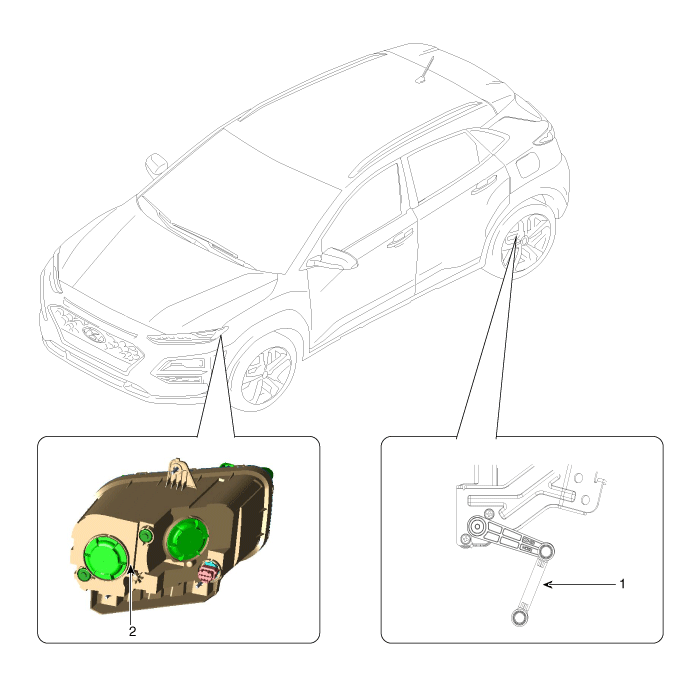

Component Location

1. Head lamp leveling unit

2. Head lamp leveling actuator (Built - in Head lamp)
