Hyundai Kona: Rear Suspension System / Components and components location

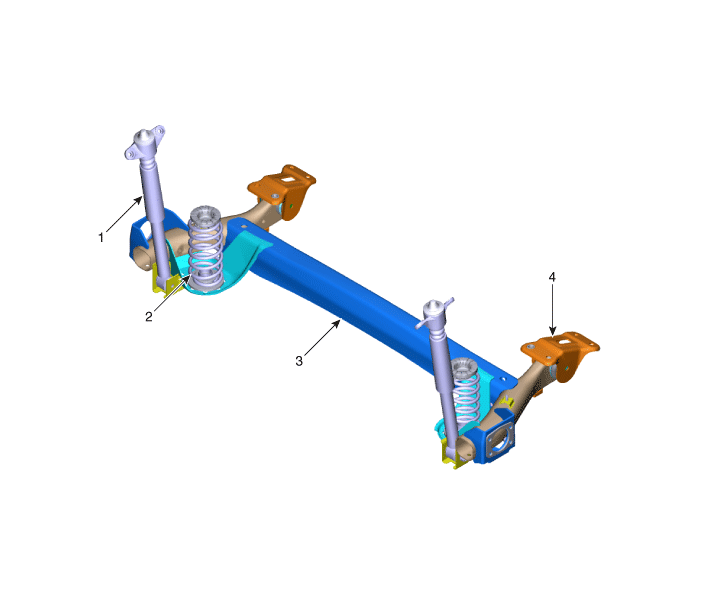

Components Location

1. Rear shock absorber
2. Coil spring
3. Torsion beam axle
4. Torsion beam axle stay

Rear Suspension System
...

Rear Shock Absorber Components and components location
Components 1. Lock nut cover 2. Lock nut 3. Bracket assembly 4. Bumper rubber 5. Dust cover 6. Shock absorber ...
