Hyundai Kona: Cooling System / Cooling Fan Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Components and components location

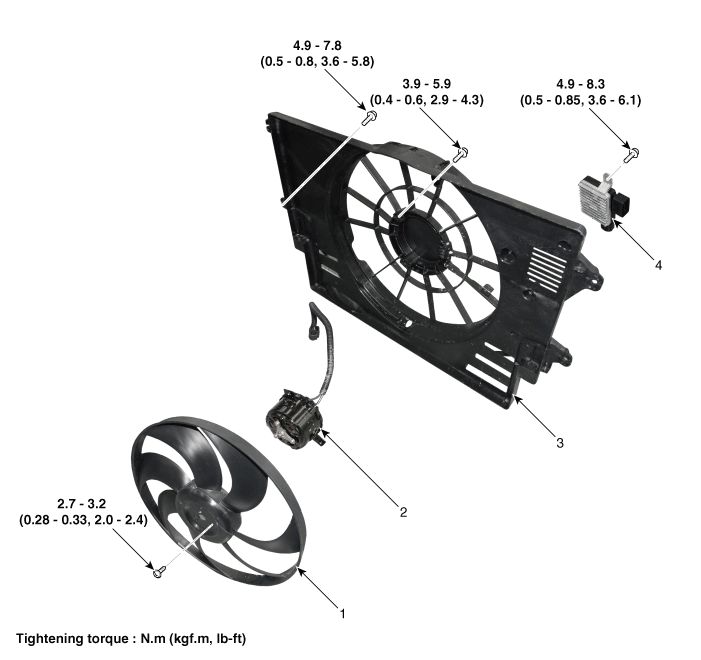

Components

1. Cooler fan
2. Fan motor
3. Cooling fan shroud
4. Cooling fan controller (PWM)

Coolant Repair procedures
Replacement and Air Bleeding    • Never remove the radiator cap when the engine is hot. ...

Cooling Fan Specifications
Specification Items Performance spec MAX, load current consumption (12 V) 23.3 + 10% Input Communica ...
