Hyundai Kona: Crash Pad / Crash Pad Side Cover Components and components location

Hyundai Kona (OS) 2018-2022 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover Components and components location

Component Location

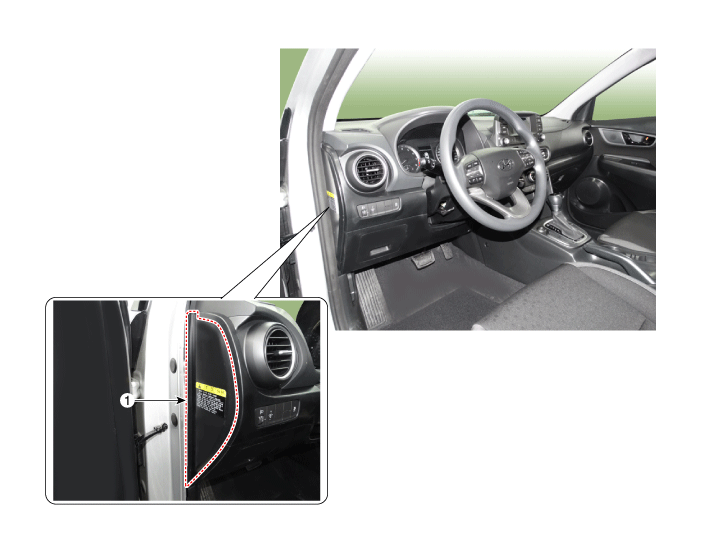

[LH]

1. Crash pad side cover [LH]

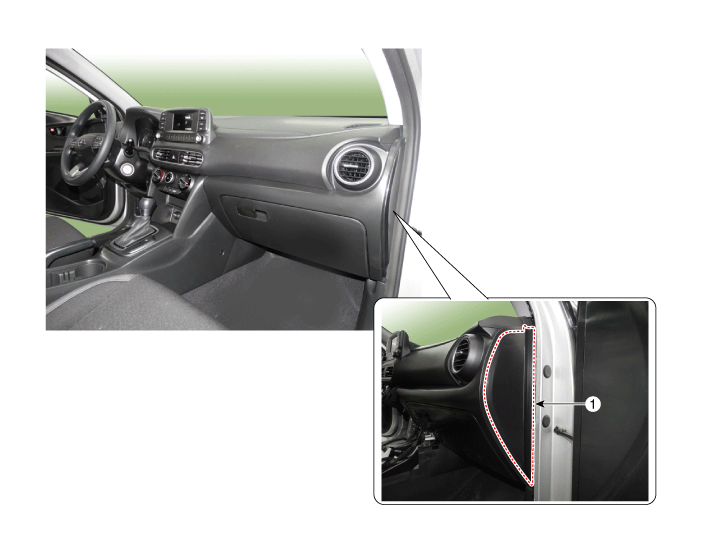

[RH]

1. Crash pad side cover [RH]
