Hyundai Kona: Cylinder Head Assembly / CVVT & Camshaft Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft Components and components location

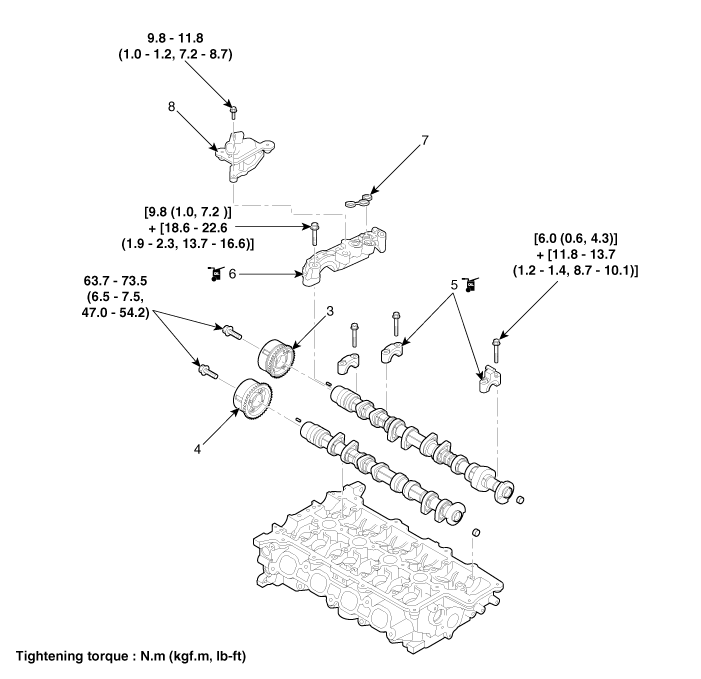

Components

1. Exhaust camshaft
2. Intake camshaft
3. Exhaust CVVT
4. Intake CVVT
5. Camshaft bearing cap
6. Camshaft front bearing cap
7. O-ring
8. Exhaust oil control valve (OCV) adapter

Cylinder Head Cover Repair procedures
Removal 1. Remove the engine cover. (Refer to Engine and Transmission Assembly - "Engine Cover") 2. Disconnect the batter ...

CVVT & Camshaft Repair procedures
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Turn the cranksh ...
