Hyundai Kona: Cylinder Head Assembly / Cylinder Head Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and components location

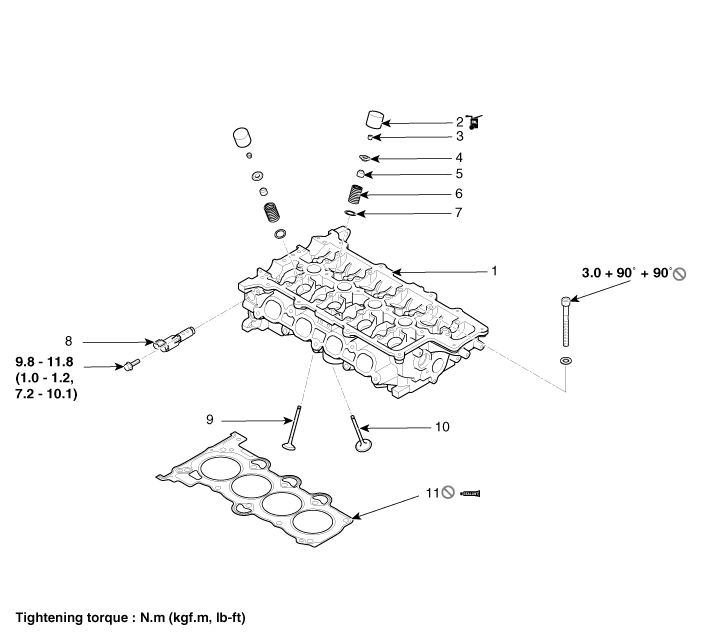

Components

1. Cylinder head assembly
2. MLA
3. Retainer lock
4. Retainer
5. Valve stem seal
6. Valve spring

7. Valve spring seat
8. OCV (Oil Control Valve)
9. Exhaust valve
10. Intake valve
11. Cylinder head gasket

CVVT & Camshaft Repair procedures

Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Turn the cranksh ...

Cylinder Head Repair procedures

Removal Engine removal is not required for this procedure. • Use fender covers to ...
