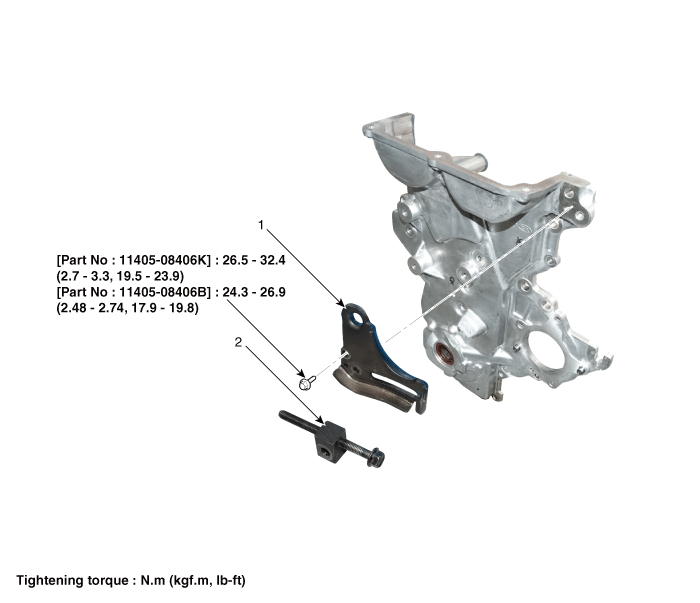

| Components |
| 1. Alternator bracket (Drive
belt tensioner) |
Idler Repair procedures
Removal and Installation
1.
Remove the drive belt.
(Refer to Timing System - "Dreve Belt")
2.
Remove the idler (A).
...
Drive Belt Tensioner Repair procedures
Removal and Installation
1.
Remove the drive belt.
(Refer to Timing System - "Dreve Belt")
2.
Remove the alternator.
...
