Hyundai Kona: Engine Control System / Exhaust Gas Temperature Sensor (EGTS) Schematic diagrams

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Control / Fuel System / Engine Control System / Exhaust Gas Temperature Sensor (EGTS) Schematic diagrams

Circuit Diagram

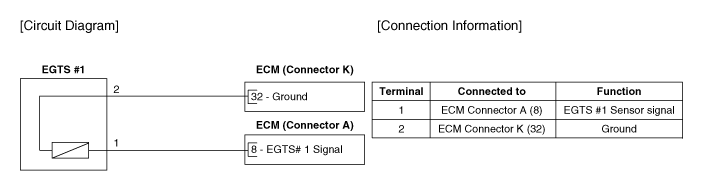

EGTS #1

Harness Connector

EGTS #2

Harness Connector

Exhaust Gas Temperature Sensor (EGTS) Specifications
Specification Exhaust Gas Temperature Sensor (EGTS) #1, 2 ▷ Type : Thermistor type Temperature [°C (°F)] Resistance (kΩ) -40 (- ...

Exhaust Gas Temperature Sensor (EGTS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect the connector of exhaust gas temperature sensors #1/#2. 3. ...
