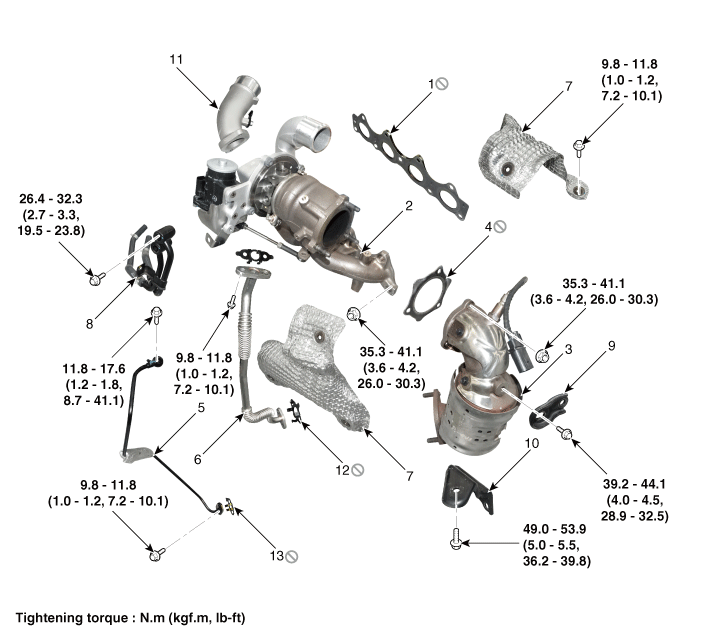

Components

1. Turbo manifold gasket
2. Turbo manifold module
3. Warm-up catalytic converter (WCC)
4. Warm-up catalytic converter (WCC) gasket
5. Oil feed pipe
6. Oil drain pipe
7. Exhaust manifold heat protector
8. Turbocharger water pipe & hose assembly
9. Warm-up catalytic converter stay A
10. Warm-up catalytic converter stay B
11. Intake pipe
12. Oil drain pipe gasket
13. Oil feed pipe gasket

Intake Manifold Repair procedures
Removal and Installation 1. Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Cover") 2. Disconn ...

Exhaust Manifold Repair procedures
Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the engine cover. (Refer to Engine and Transaxle As ...
