Hyundai Kona: AVN System / External AMP Components and components location

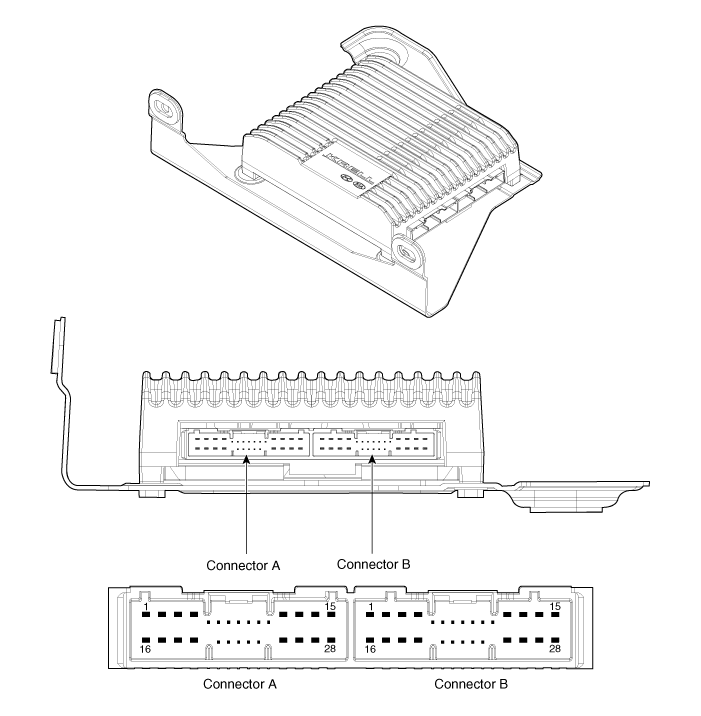

| Components |
|
NO |
Connector A |
NO |
Connector B |
|
1 |
BATT (+) |
1 |
Rear door speaker - LH (+) |
|
2 |
BATT (+) |
2 |
Rear door speaker - LH (-) |
|
3 |
BATT (+) |
3 |
Rear door speaker - RH (+) |
|
4 |
BATT (+) |
4 |
Rear door speaker - RH (-) |
|
5 |
- |
5 |
- |
|
6 |
Multimedia CAN (High) |
6 |
- |
|
7 |
Multimedia CAN (Low) |
7 |
- |
|
8 |
ACC |
8 |
- |
|
9 |
Navigation voice (+) |
9 |
- |
|
10 |
- |
10 |
- |
|
11 |
- |
11 |
- |
|
12 |
Front door speaker - LH (+) |
12 |
- |
|
13 |
Front door speaker - LH (-) |
13 |
- |
|
14 |
Front door tweeter speaker - RH (+) |
14 |
- |
|
15 |
Front door tweeter speaker - RH (-) |
15 |
- |
|
16 |
Ground |
16 |
Subwoofer (+) |
|
17 |
Ground |
17 |
Subwoofer (-) |
|
18 |
Ground |
18 |
Center speaker (+) |
|
19 |
Ground |
19 |
Center speaker (-) |
|
20 |
SPDIF (High) |
20 |
- |
|
21 |
SPDIF (Low) |
21 |
- |
|
22 |
SPDIF GND |
22 |
- |
|
23 |
Navigation voice (-) |
23 |
- |
|
24 |
IGN 1 |
24 |
- |
|
25 |
Front tweeter speaker - LH (+) |
25 |
- |
|
26 |
Front tweeter speaker - LH (-) |
26 |
- |
|
27 |
Front tweeter speaker - RH (+) |
27 |
- |
|
28 |
Front tweeter speaker - RH (-) |
28 |
- |
