Hyundai Kona: Repair procedures / Front Impact Sensor (FIS) Components and components location

Hyundai Kona (OS) 2018-2022 Service Manual / Restraint / Repair procedures / Front Impact Sensor (FIS) Components and components location

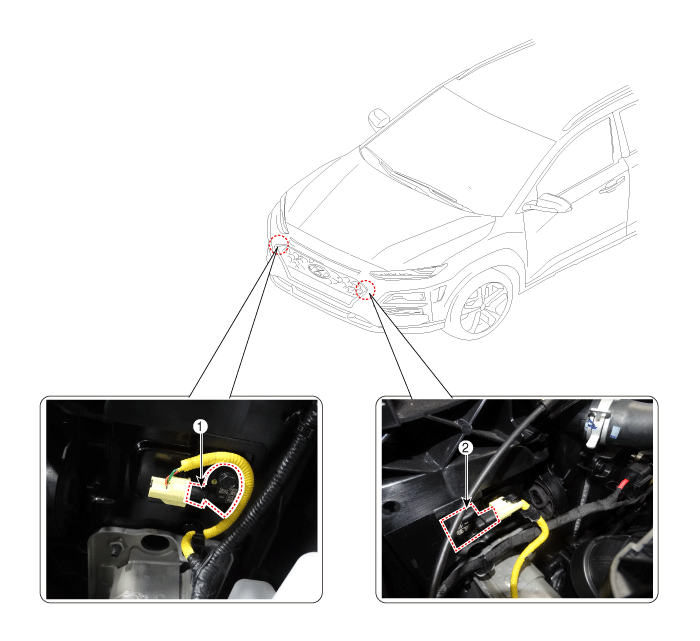

Components

1. Front right Impact Sensor (FIS)
2. Front left Impact Sensor (FIS)
