Hyundai Kona: Front Suspension System / Front Lower Arm Components and components location

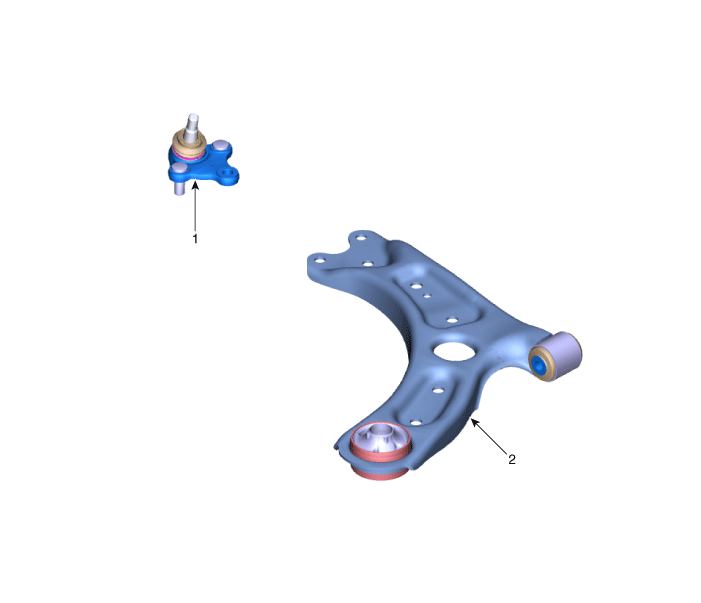

Components

1. Ball joint assembly
2. Front lower arm assembly
