Hyundai Kona: Dual Clutch Transmission Control System / Gear Actuator Assembly Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Gear Actuator Assembly Components and components location

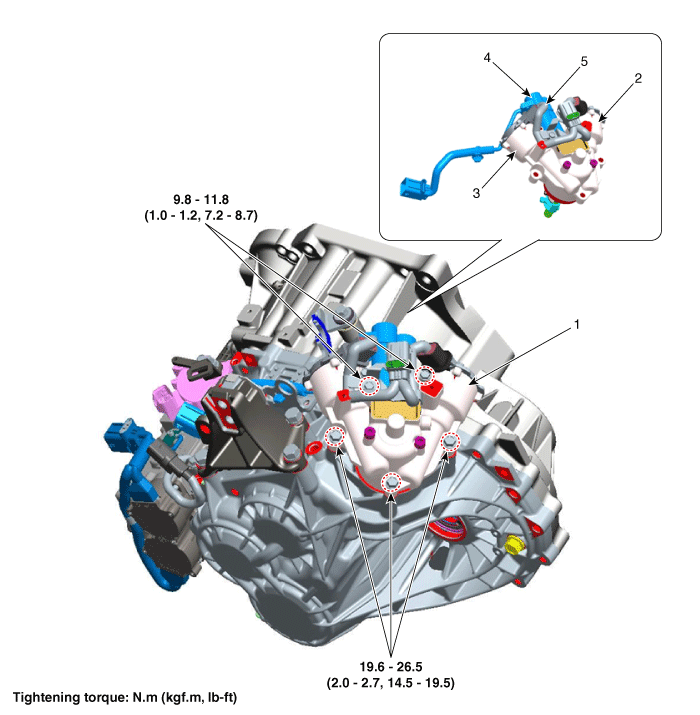

Components

1. Gear actuator assembly
2. Shift motor (Even)
3. Shift motor (Odd)

4. Select solenoid (Even)
5. Select solenoid (Odd)

Clutch Actuator Assembly Repair procedures

Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") 2. Disconnec ...

Gear Actuator Assembly Specifications

Specification Item Condition Specification Resistance (line to line) Shift motor 1/2 126.4 mΩ ± 10% ...
