Component Location

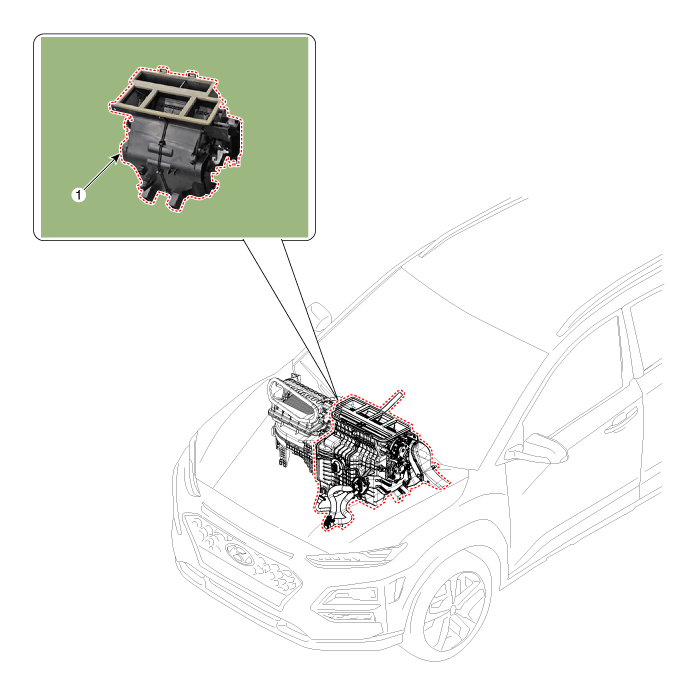

1. Heater unit assembly

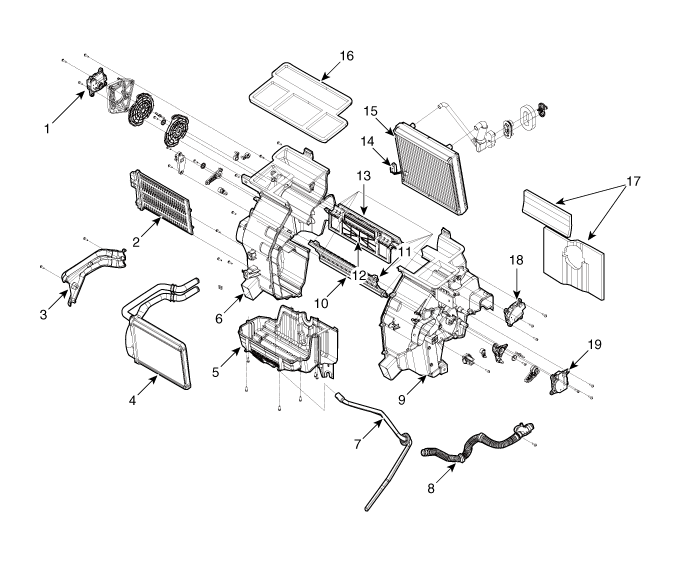

Compoents

1. Mode control actuator
2. PTC Heater
3. Heater core cover
4. Heater core & seal assembly
5. Heater lower cover
6. Heater case [LH]
7. Drain hose

8. Inhale hose
9. Heater case [RH]
10. Temperature door assembly
11. Floor door assembly
12. Vent door assembly
13. Deforster door assembly
14. Evaporator temperature sensor

15. Evaporator core assembly
16. Center duct seal
17. Heater unit pad
18. Auto defogging actuator
19. Temperature control actuator

Heater Unit Repair procedures
