Hyundai Kona: Dual Clutch Transmission Control System / Inhibitor Switch Schematic diagrams

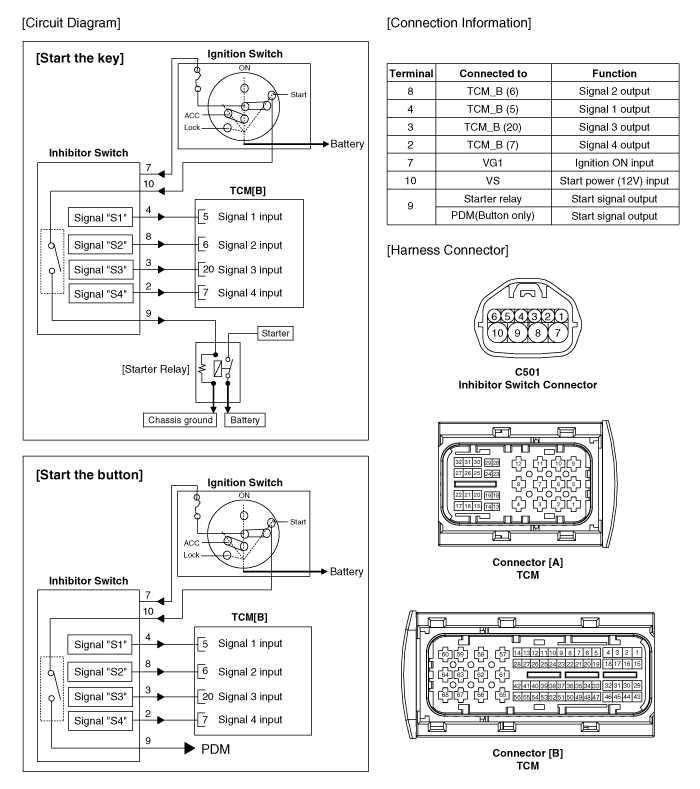

Circuit Diagram

Inhibitor Switch Specifications
Specifications Type: Combination of output signals from 4 terminals Item Specifications Output type Combination of output sign ...

Inhibitor Switch Troubleshooting
Fault Diagnosis Fault Diagnosis for Symptom Major Symptom Expected Cause Items to Check and Measures Shift lever not ...

Other information:

Hyundai Kona (OS) 2018-2020 Service Manual: Stop Lamp Switch Schematic diagrams
Schematic Diagram System circuit diagram Terminal function Teminal Description 1 IGN1 2 Engine Control Module (ECM) 3 B+ ...

Hyundai Kona (OS) 2018-2020 Service Manual: Relay Box (Engine Compartment) Components and components location
Component Location Engine Room Junction Block Metal Core Block (PCB) ...
