Hyundai Kona: Engine Control System / Injector Troubleshooting

Signal Waveform

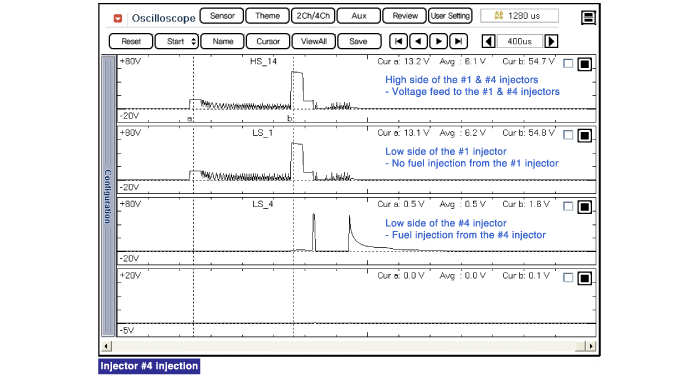

The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is from the low side (ground side) of the #1 injector and the bottom waveform is from the low side of the #4 injector.
The middle waveform is the same as the top waveform because there is no ground for the circuit. With no current flowing in the circuit, the #1 injector is not energized and fuel does not flow.
The bottom waveform shows that ground is supplied and there is a voltage drop across the #4 injector. With current flowing in the circuit, the #4 injector is energized and fuel flows.

Injector Specifications
Specification Item Specification Coil Resistance (Ω) 1.5 ± 0.075 [20°C (68°F)] ...

Injector Schematic diagrams
Circuit Diagram Harness Connector ...
